1080P Baby Car Camera System With 4.5 Inch LCD Dashboard Monitor

Rear Cabin Monitoring System

The system uses a 1080P rear cabin camera with a 150 degree wide-angle lens for continuous viewing of rear seating areas during driving. The camera housing is constructed from ABS plastic and mounts to a rear headrest using adjustable securing straps. A 360 degree rotating bracket allows vertical and horizontal positioning to match different vehicle interiors and child seat layouts. Integrated infrared LEDs automatically support low-light visibility inside the cabin during nighttime driving. Mirror and standard viewing modes can be selected depending on rear seat orientation and driver preference.

Wired Dashboard Display

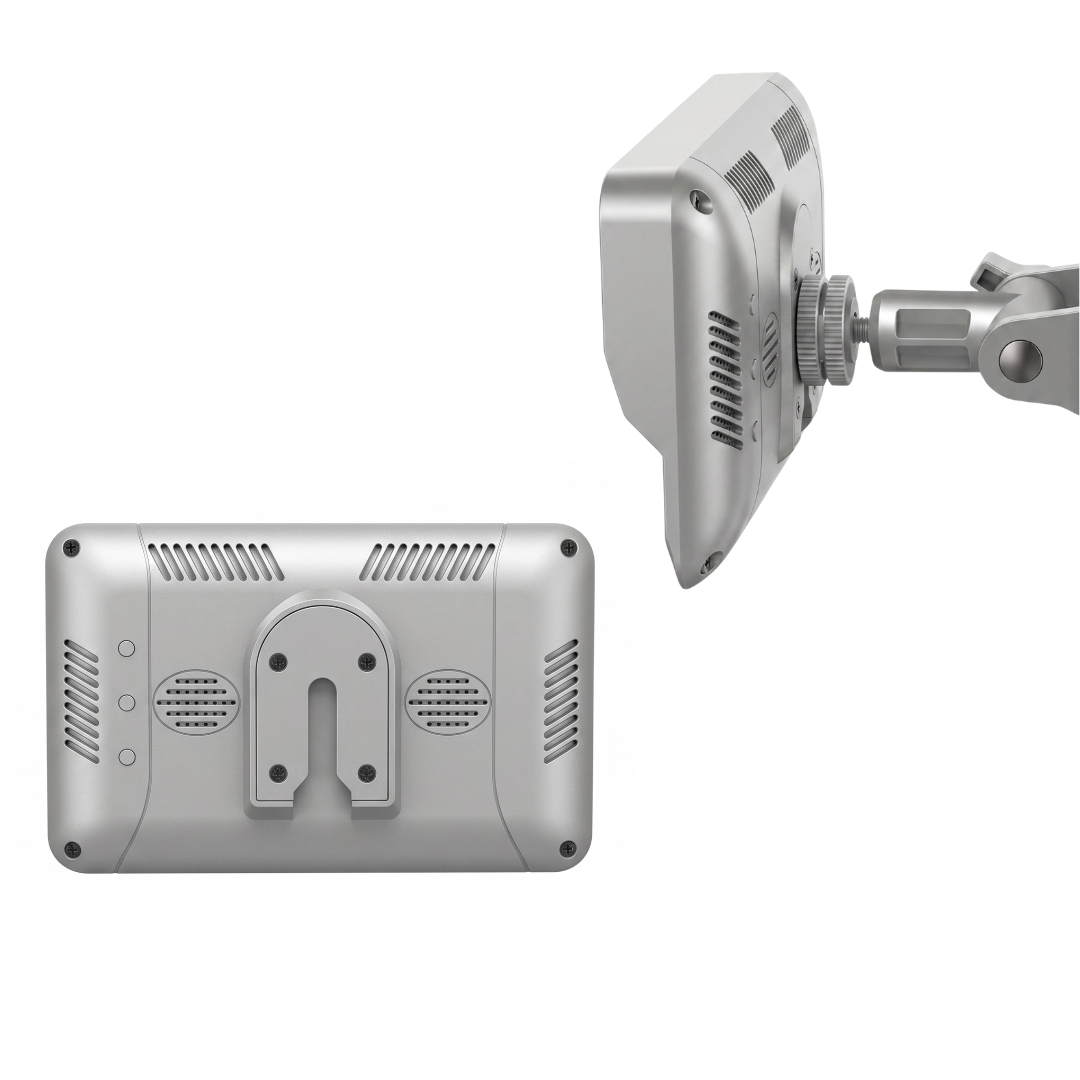

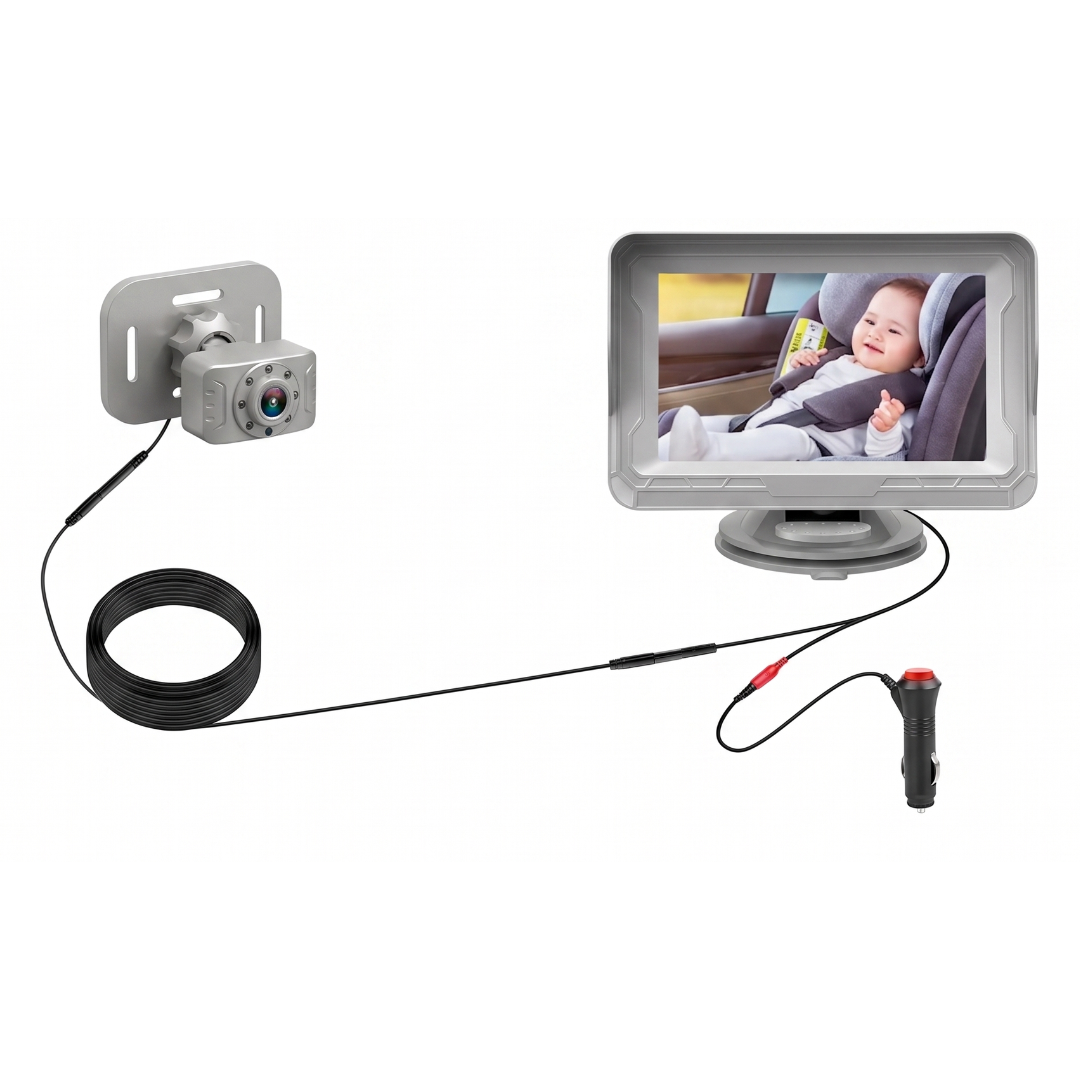

Video transmission operates through a dedicated wired connection between the rear camera and front monitor assembly. The monitor uses a 4.5 inch LCD display housed in a compact dashboard unit measuring approximately 5.2 × 3.5 inches. Power is supplied through the included 12V vehicle outlet adapter compatible with standard passenger vehicle interiors. Brightness, contrast, and display orientation settings are adjustable using the onboard rear control buttons. The monitor mounts to dashboards or windshields using the included suction bracket with adjustable viewing angle support.

Vehicle Installation Layout

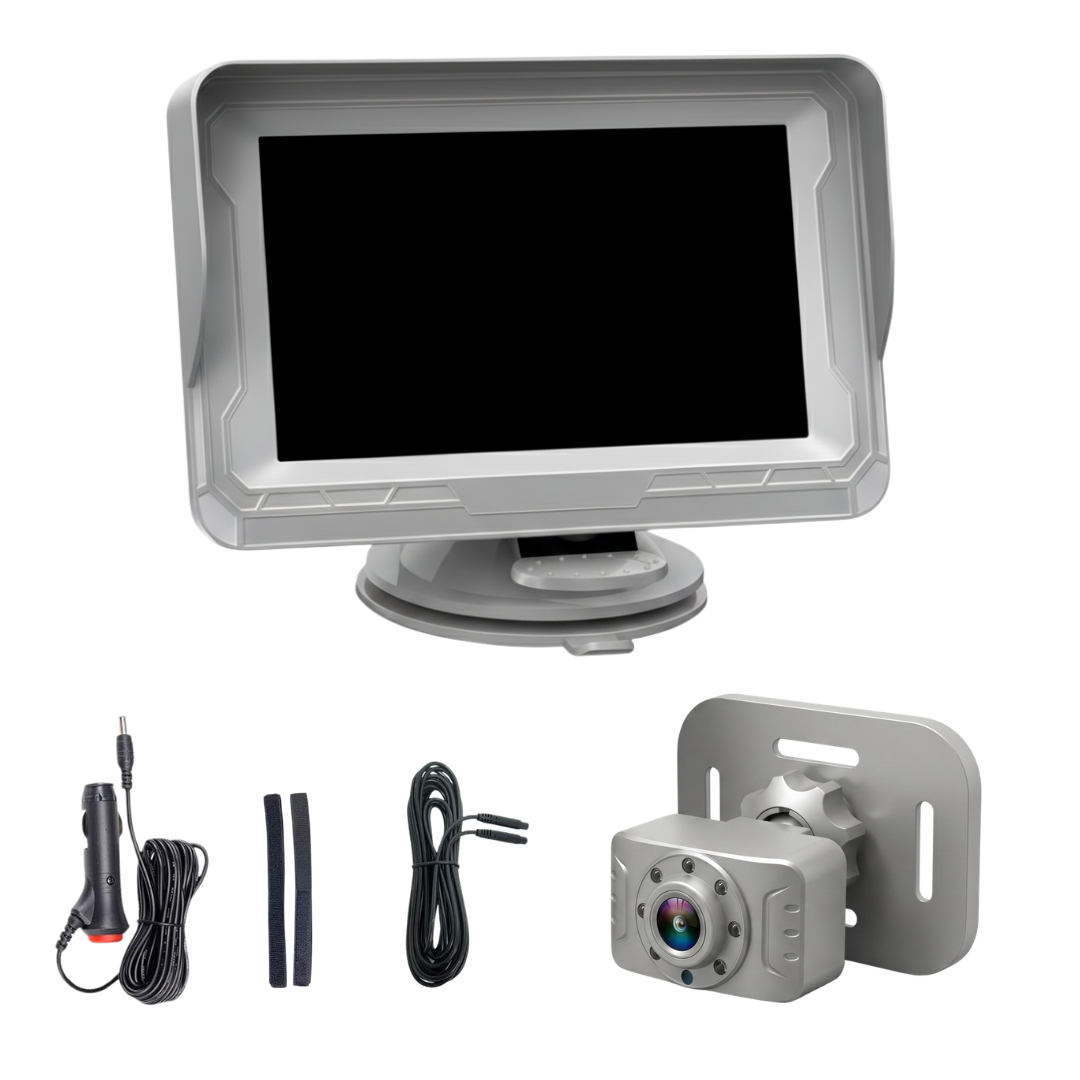

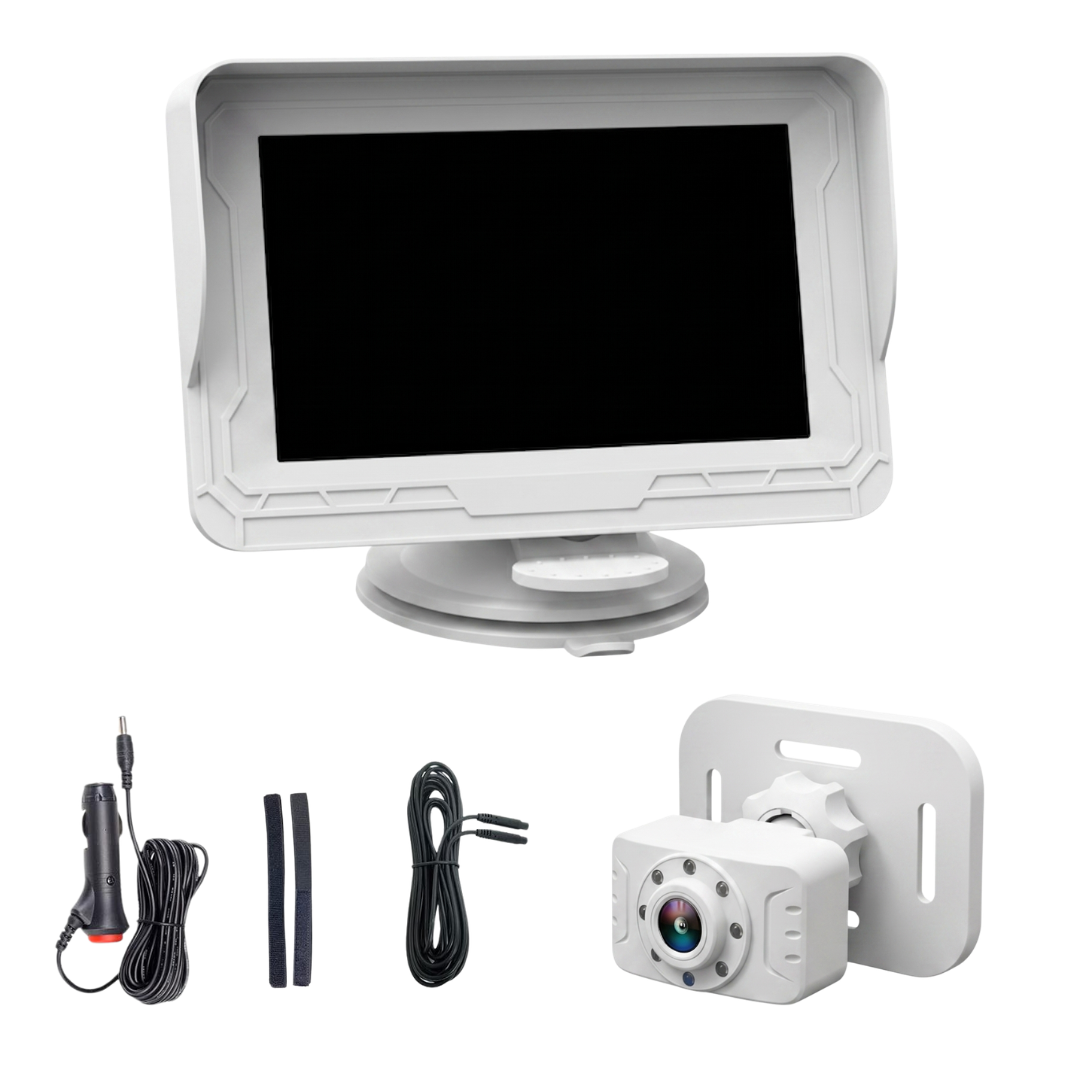

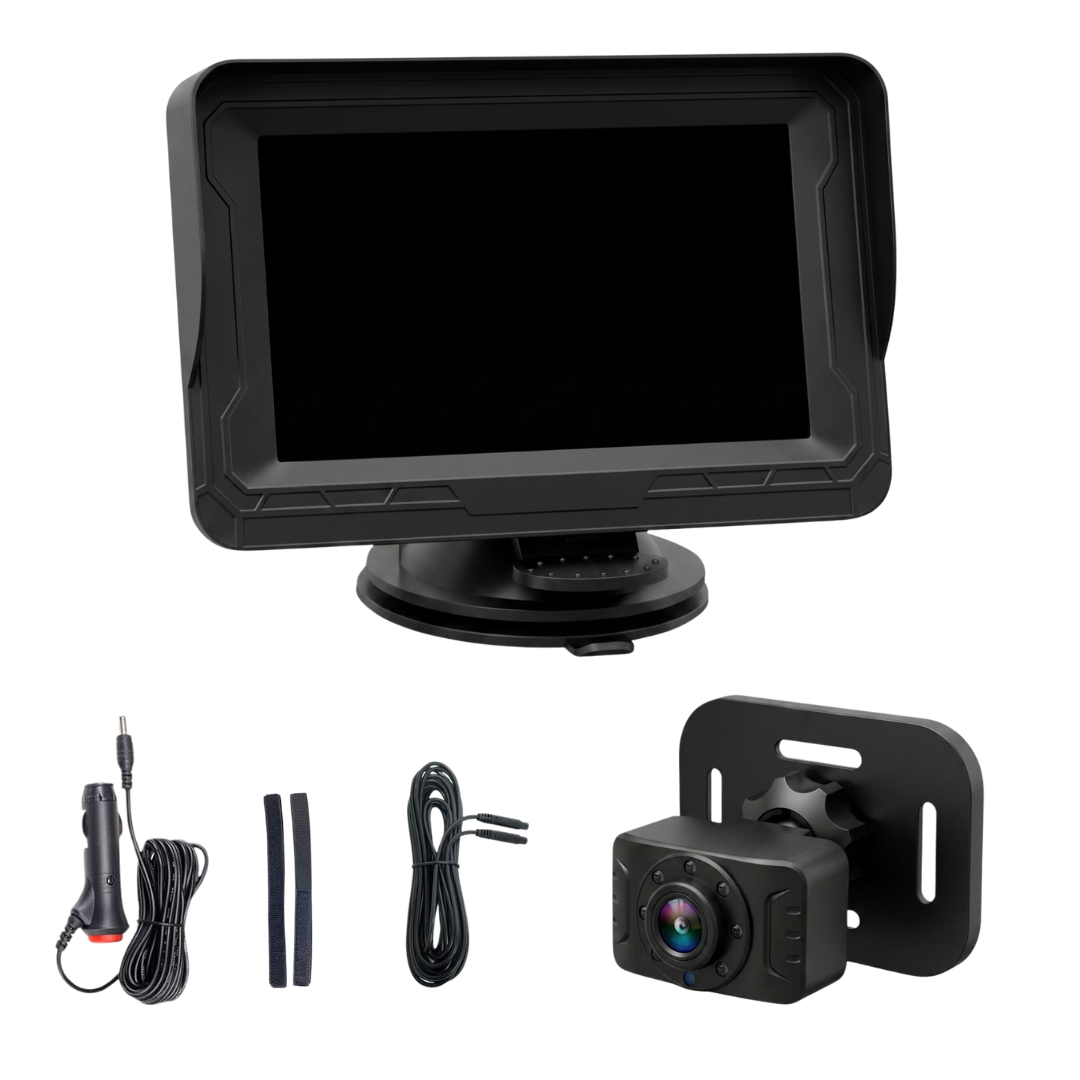

The rear camera secures around most adjustable headrests without screws, adhesives, or permanent mounting hardware. Cable routing can be positioned along seat edges, center consoles, or interior trim sections depending on cabin layout. The dashboard monitor bracket supports directional adjustment after mounting for improved driver visibility. Included components consist of the LCD monitor, rear camera, connection cable, suction mount, mounting straps, 12V vehicle power adapter, and user manual. The housing and lens surfaces can be cleaned using a dry microfiber cloth.

Product Benefits:

• Wide-Angle Rear Coverage: 150 degree lens captures both rear seating positions within a single frame.
• Infrared Night Vision: Integrated IR LEDs automatically support low-light cabin visibility.
• 360 Degree Adjustable Camera: Rotating rear mount adjusts vertically and horizontally for positioning flexibility.
• 4.5 Inch LCD Monitor: Dedicated dashboard display provides continuous rear cabin viewing while driving.
• Adjustable Viewing Angle: Suction-mounted monitor bracket allows directional positioning after installation.
• 12V Plug-In Power: Operates through a standard vehicle outlet using the included adapter.
