Lift Points, Not Guesswork

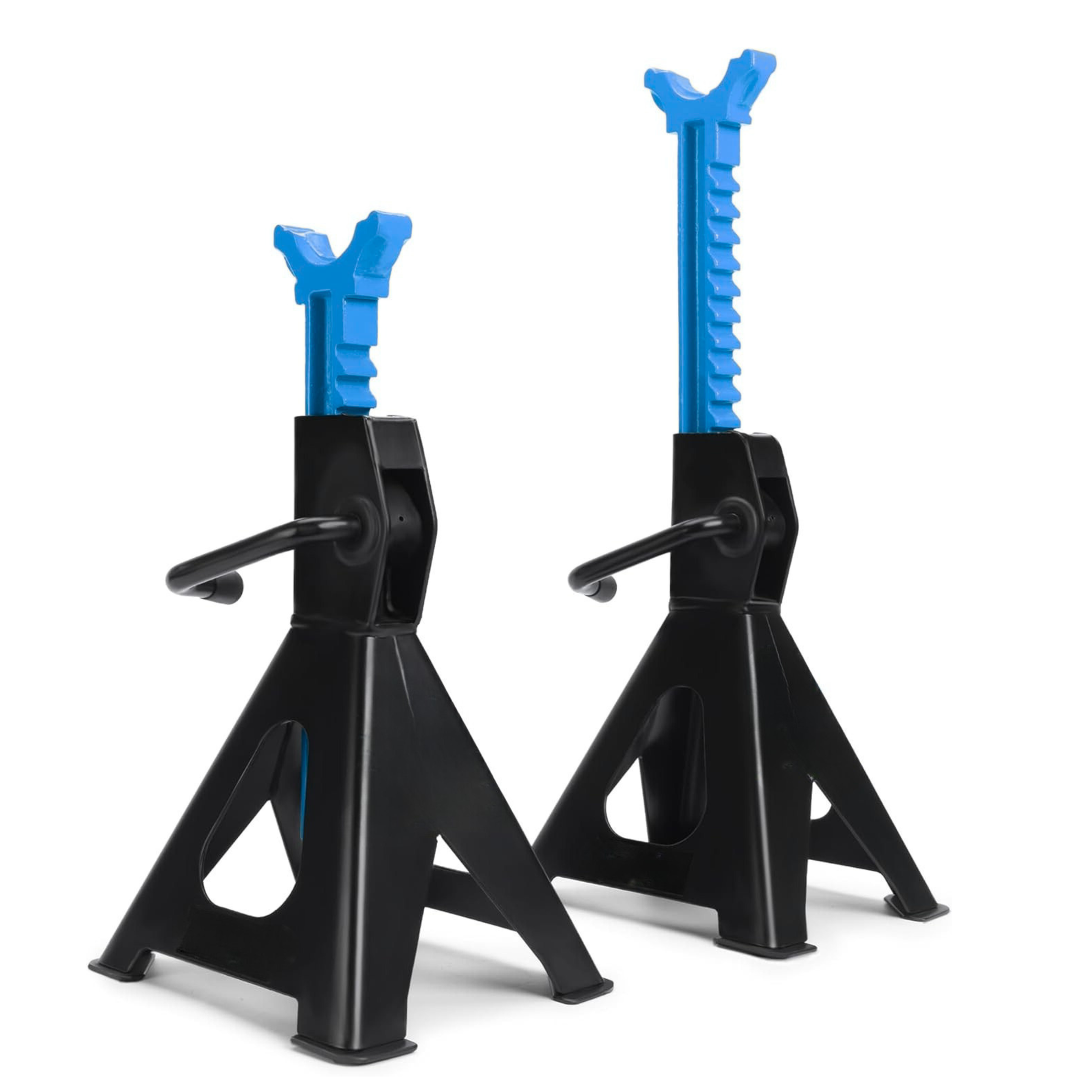

This pair uses an alloy steel welded-frame body with a cast iron ratchet bar for manual height setting under static load. Adjustment spans 13.39 to 21.06 inches (340 to 535 mm) for taller chassis and higher lift points on SUVs, MPVs, and UTV/ATV applications. The pyramid base has a 7.2 × 8.86 in footprint to spread ground contact on shop floors and drive surfaces. The saddle contact area is shaped for common pinch welds and frame lift locations.
Ratchet Bar Operation in Plain Terms

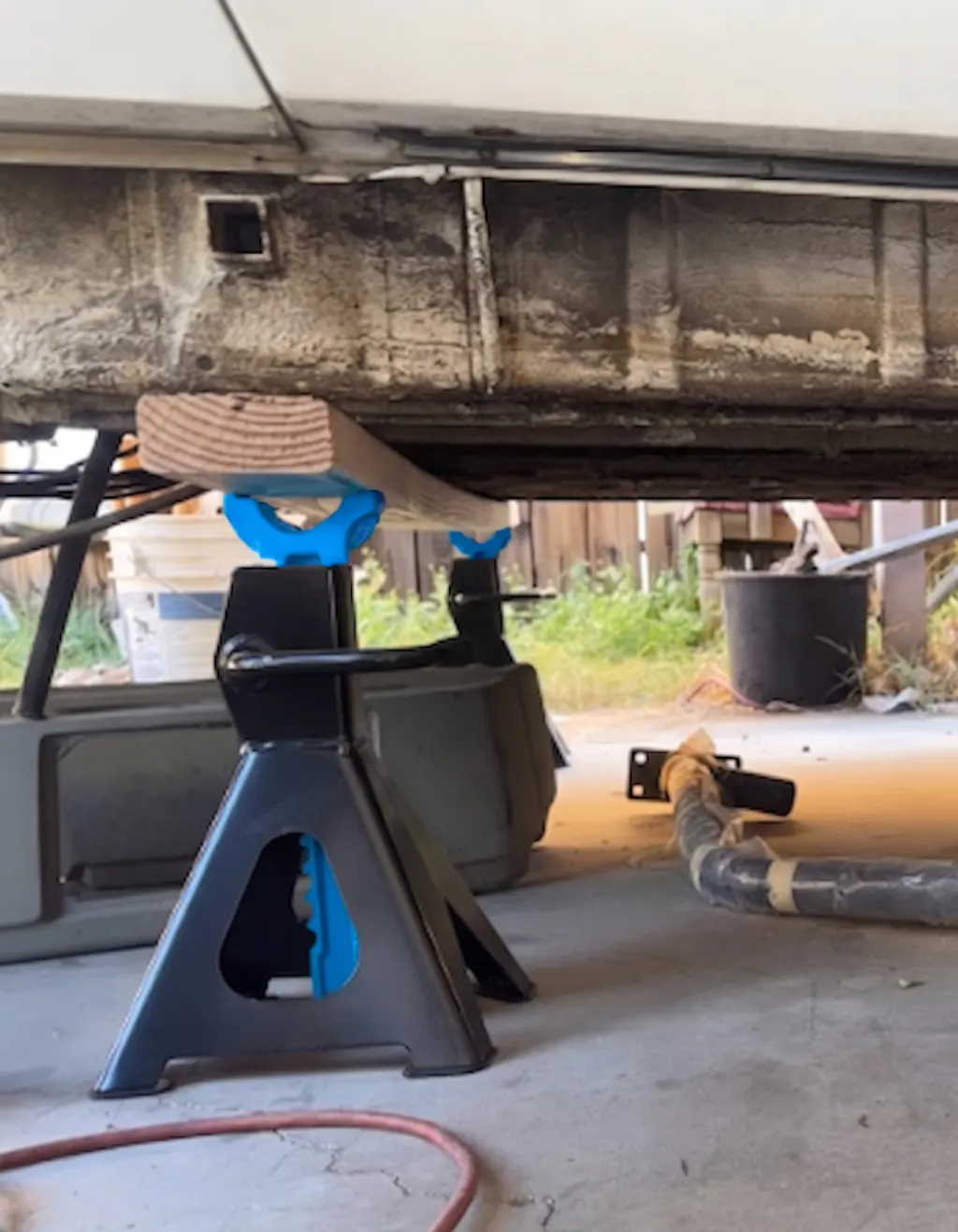

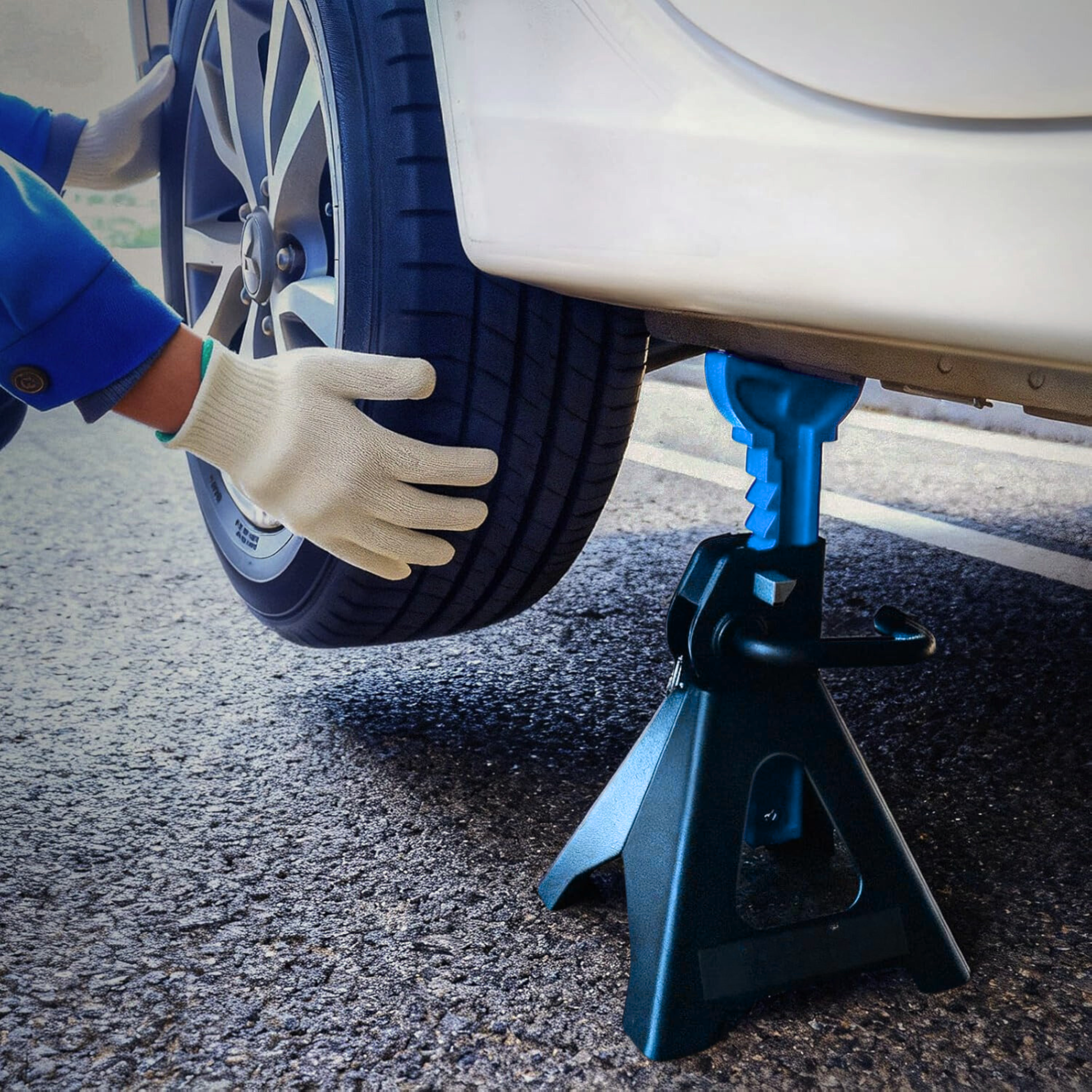

Height is set through a self-locking ratcheting column with a sawtooth profile that indexes in stepped positions as the post is raised. After setting the stand, place it under a manufacturer-specified lift location once the vehicle is raised with a floor jack, then lower the load onto the saddle. The set is rated at 3 tons (6,000 lb) for static vehicle support during maintenance that requires underbody access. Components are used with typical floor jacks and standard garage service sequences.
Setup That Matches Garage Routine
Place each base flat on a level surface, then raise the ratchet column to match the intended lift location before lowering the vehicle onto the saddle. When supporting the same axle, set both stands to the same tooth position to match height. Store the pair in a garage cabinet, shelf, or trunk cargo area based on available space. Remove debris from the ratchet teeth and saddle using a dry brush or shop towel.
Product Benefits:
-
Vehicle lift-point fit: Saddle shape matches common pinch welds and frame lift locations.
Manual height setting: Sawtooth ratchet column sets height in stepped positions with a locking pawl.

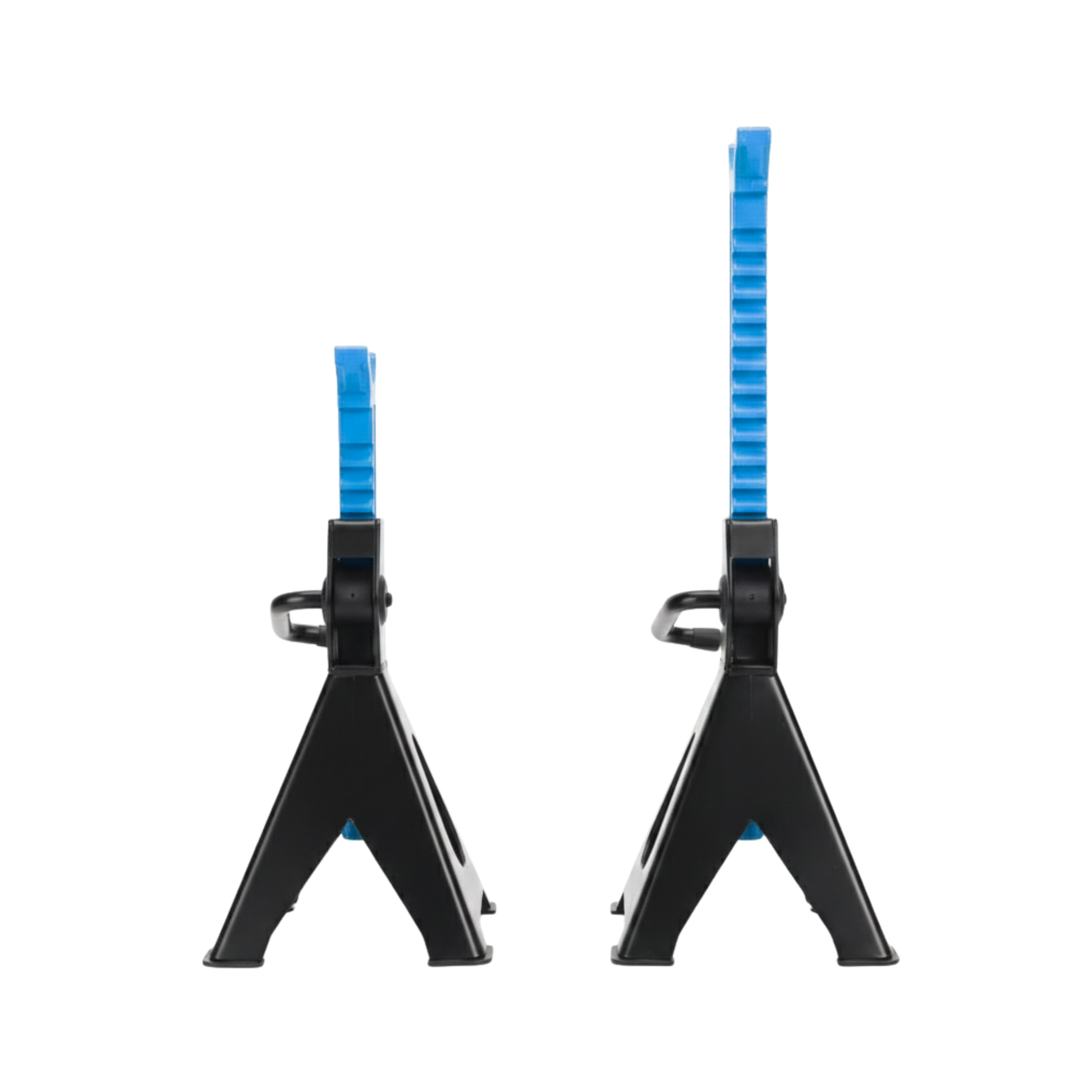

Height range for taller chassis: 13.39–21.06 in (340–535 mm) supports higher lift points on SUVs, MPVs, and UTV/ATV use cases.
Base contact footprint: 7.2 × 8.86 in pyramid base spreads contact area on garage floors and driveway surfaces.
Two-stand axle support: Set both stands to the same ratchet tooth when supporting the same axle.
Specification:
-
Material: Alloy steel welded-frame body; cast iron ratchet bar
-
Dimensions: 8.86 × 7.2 × 13.39 in
-
Weight: 17 lb per pair
-
Operating Range or Capacity: Height 13.39–21.06 in; load capacity 3 tons per set
-
Connection Type: Saddle contact interface; ratcheting post mechanism
- Placement or Use Area: Garage floor or driveway surface; under-vehicle lift locations
