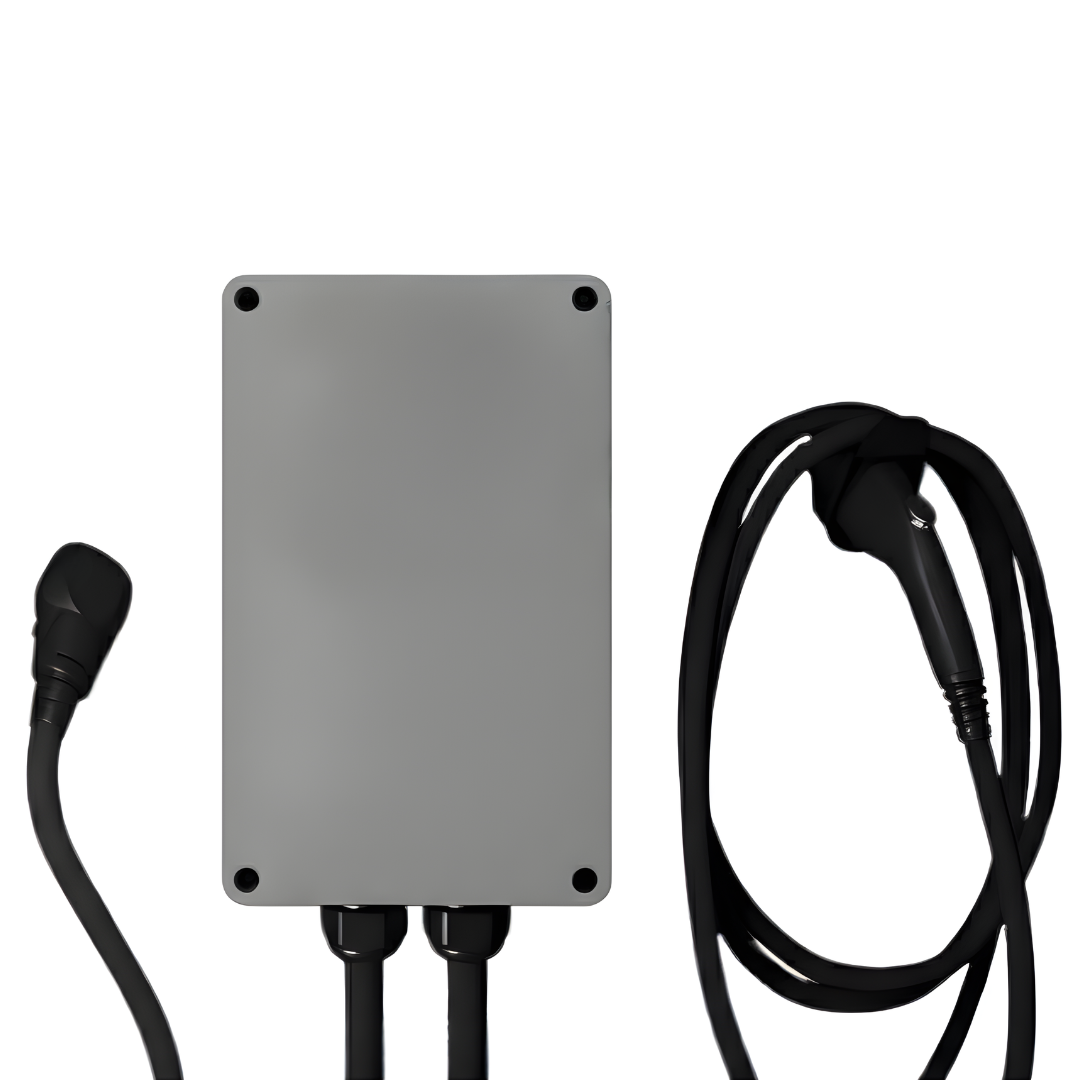

Level 2 EV Charger 240V 40A Wall Station NEMA 14-50/6-50 Plug

Circuit-Ready Power Delivery

This Level 2 charging unit operates on a 240V AC supply with selectable current settings of 16A, 24A, 32A, or 40A aligned with common circuit breaker sizes following the 80% continuous load guideline. The enclosure uses a sealed metal housing with an IP67 ingress rating and NEMA 4 classification for resistance to dust, water, and outdoor exposure. Internal circuitry includes monitoring for voltage range, current flow, and thermal conditions with automatic reset capability. The system is designed for use with standard North American EV and PHEV charging interfaces.

Current Flow and Output Control

The charger connects to a dedicated 240V outlet using either a NEMA 14-50 plug or NEMA 6-50 configuration, depending on model. Output is delivered through a SAE J1772 connector, supporting up to 40A charging current depending on circuit capacity. Integrated components include ground fault circuit interruption, overcurrent detection, and voltage regulation. Charging output corresponds to circuit limits with selectable amperage settings for different installation requirements.

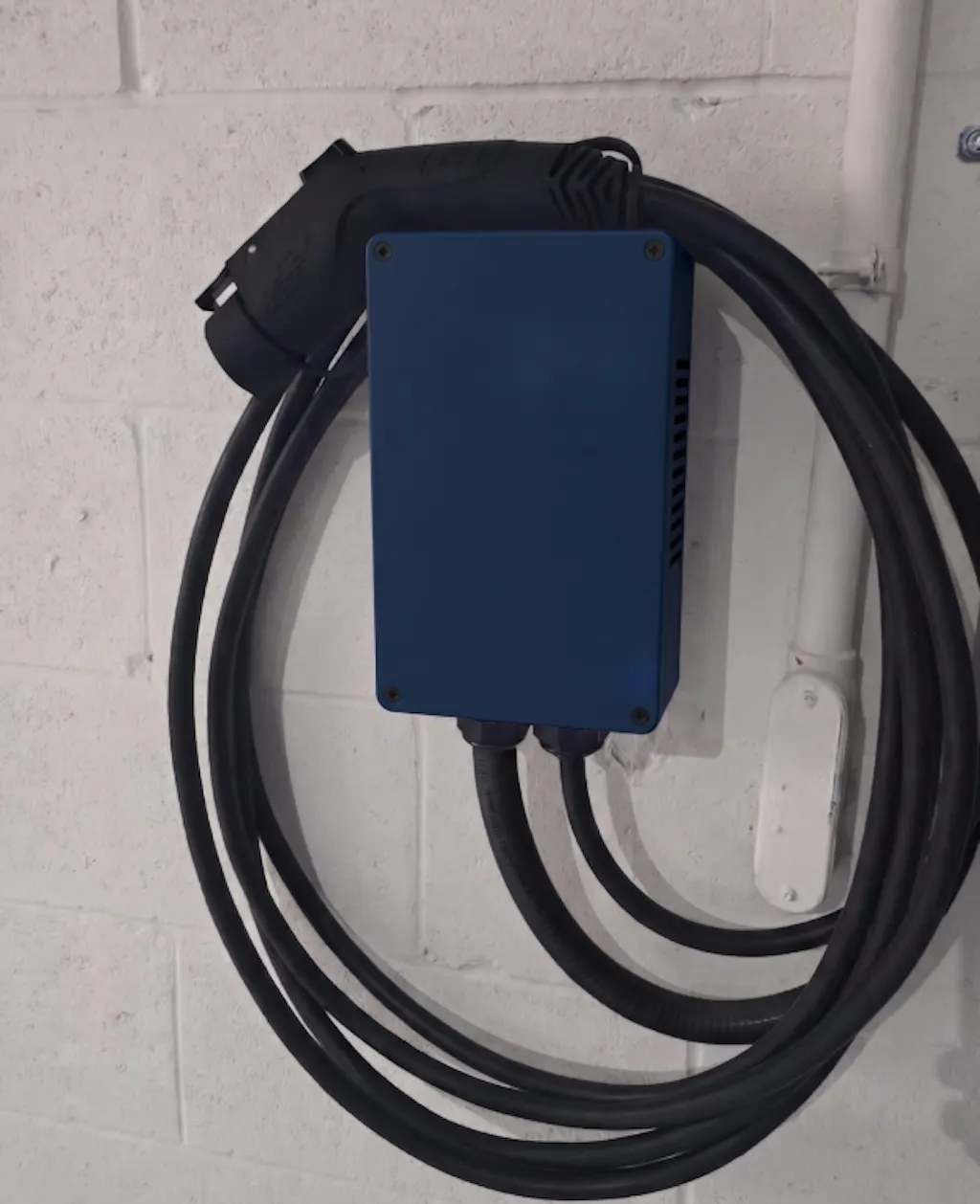

Wall Mount and Cable Management

Installation uses the included mounting bracket and backplate cradle secured with provided screws and anchors. The unit can be detached from the bracket using a removable retaining pin for relocation or storage. A 24 ft charging cable supports reach across typical garage or driveway layouts. The package includes plug holder hardware for organized cable routing when not in use.

Product  Benefits:

• Vehicle Compatibility: Works with electric and plug-in hybrid vehicles using the J1772 charging interface standard in North America.
• Adjustable Current Settings: Selectable output levels of 16A, 24A, 32A, or 40A output levels.
• Direct Power Connection: Uses a NEMA 14-50 or NEMA 6-50 plug for connection to a 240V dedicated outlet.
• Wall Mount Configuration: Includes bracket, backplate, and hardware for fixed installation.
• Extended Cable Reach: 24 ft charging cable supports typical garage and driveway layouts.

Specifications:

• Housing Material: Metal enclosure
• Plug Type: NEMA 14-50 or NEMA 6-50
• Connector Type: J1772 connector
• Unit Body Dimensions: 14 × 10 × 4 in
• Input Voltage: 240V AC dedicated circuit
• Output Current Range: 16A to 40A selectable
• Cable Length: 24 ft
• Ingress and Enclosure Rating: IP67, NEMA 4 rated housing
• Installation Location: Indoor or outdoor wall-mounted placement in garage or driveway

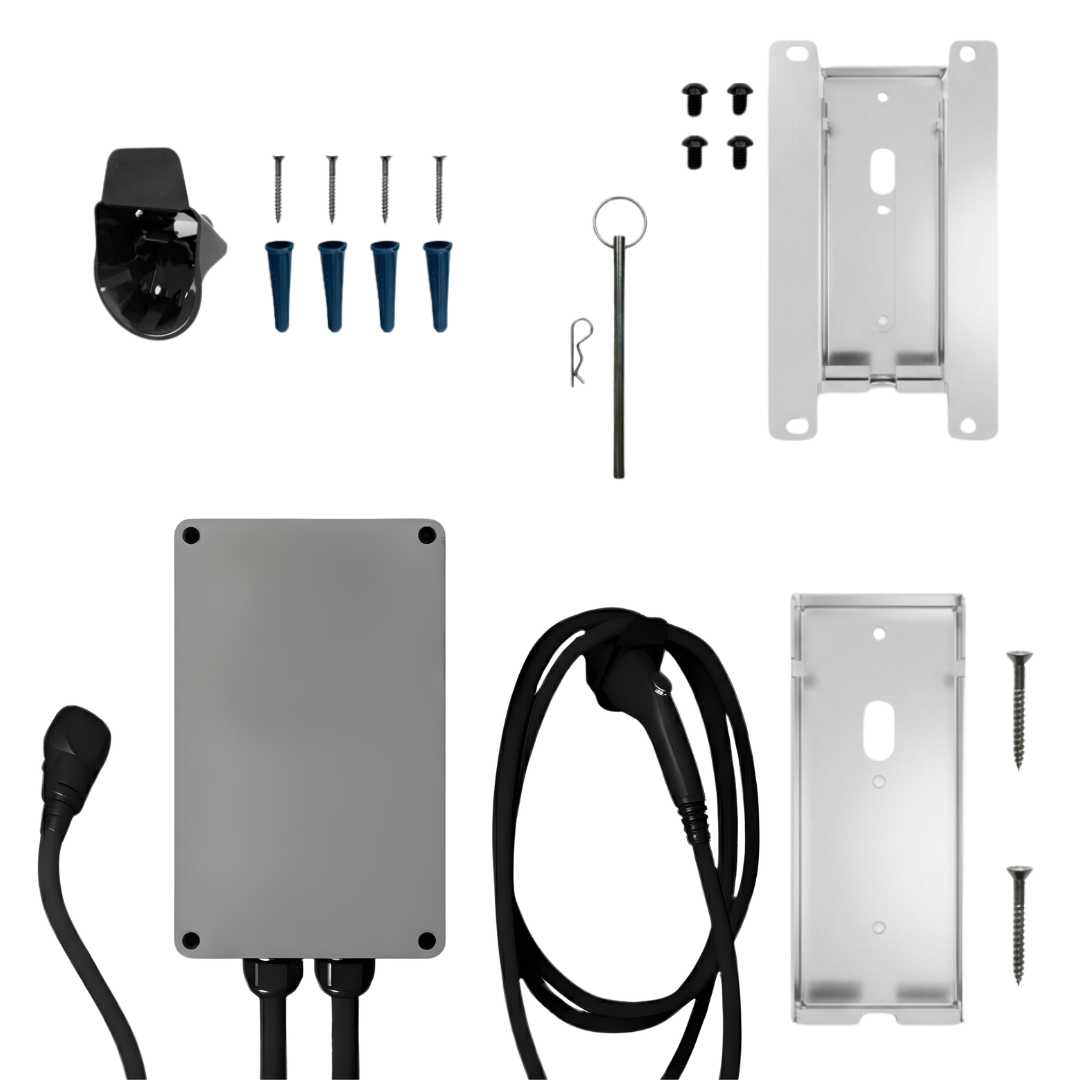

• Included Hardware: Charging unit, mounting bracket, backplate cradle, screws, anchors, plug holder, retaining pin
