Low Profile Hydraulic Floor Jack, Dual Piston Quick Lift, 3 or 5 Ton

Underbody Clearance, Not Guesswork

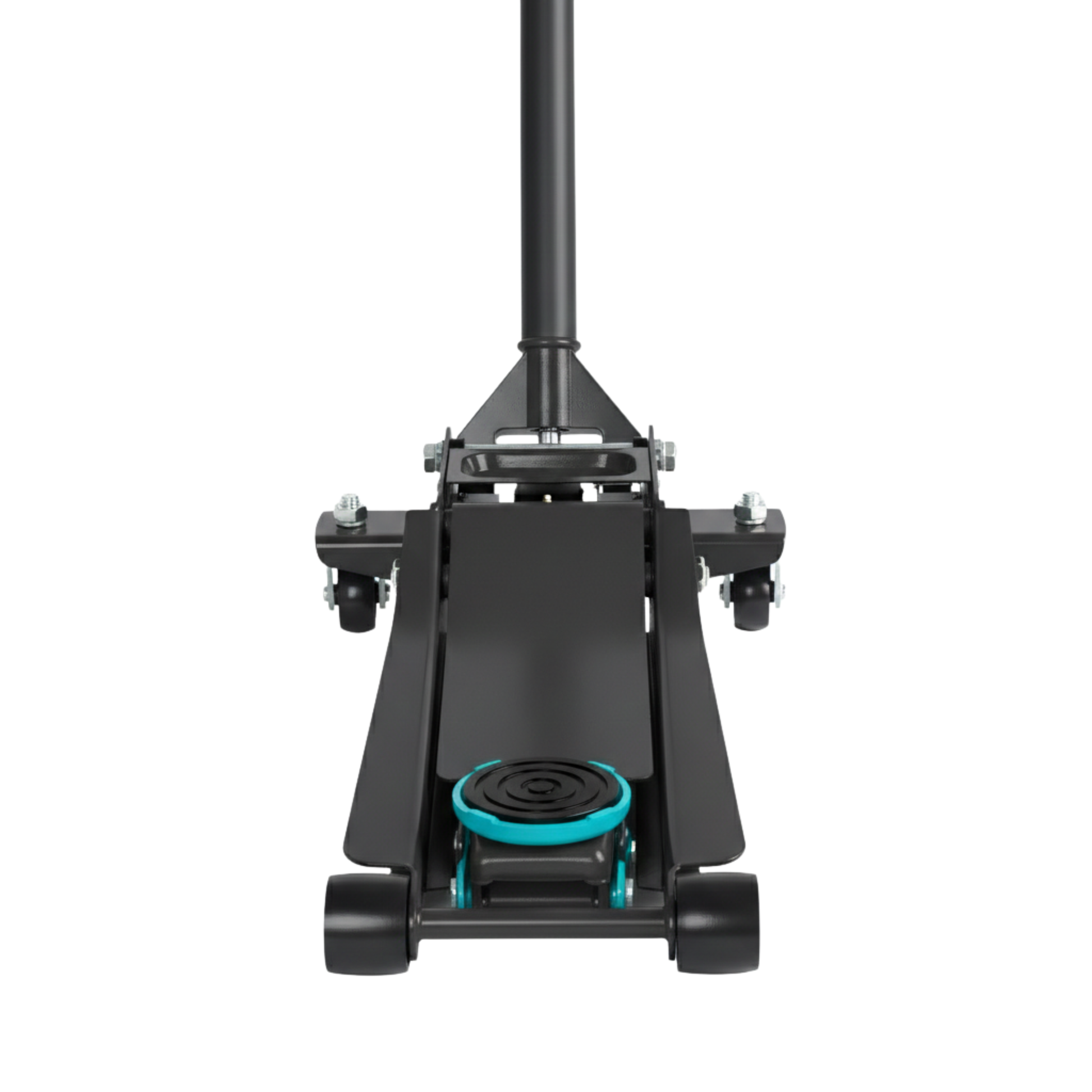

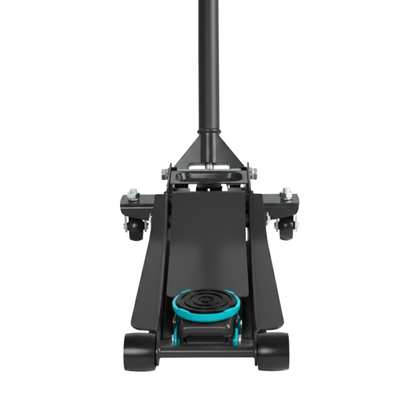

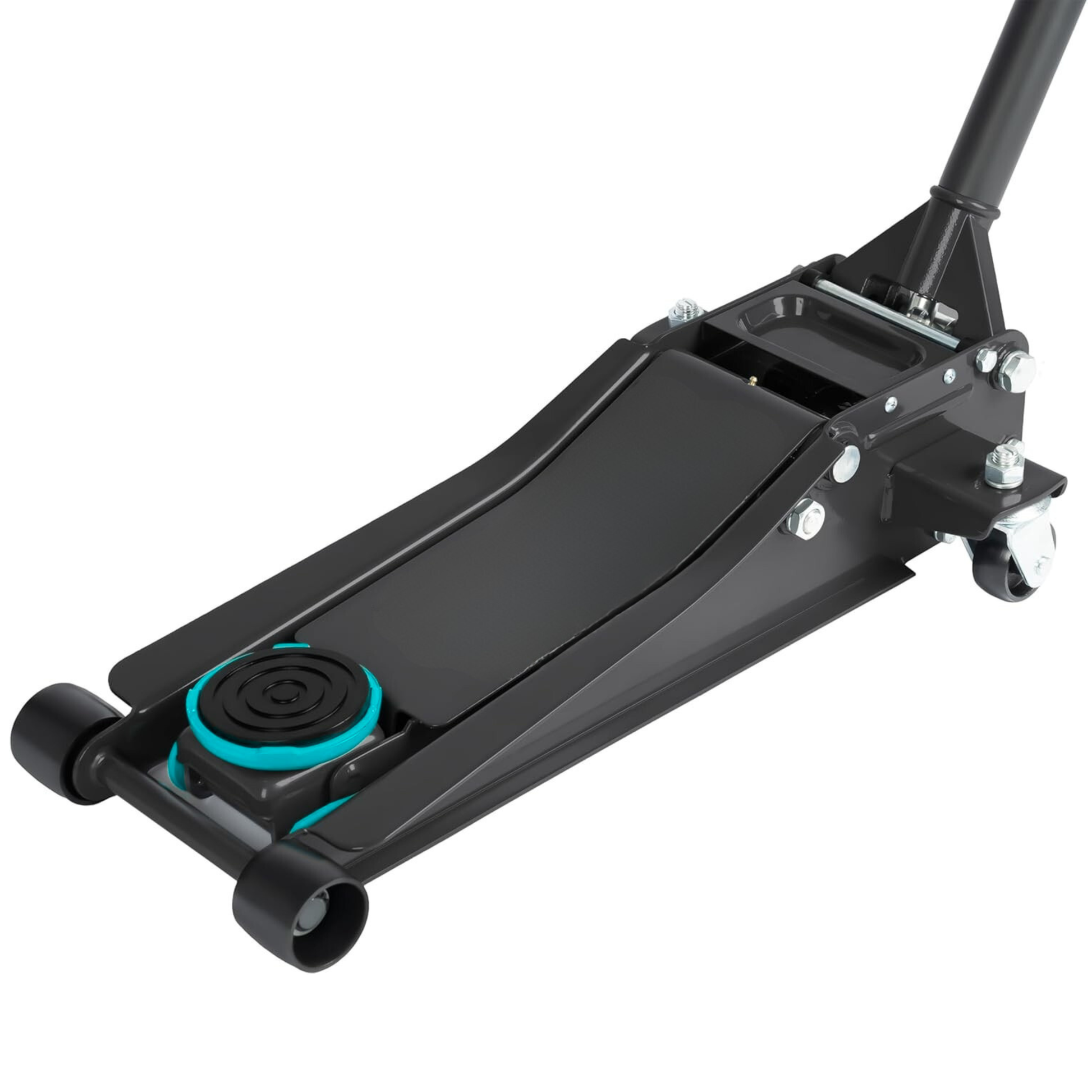

This 2-in-1 listing includes two low profile hydraulic floor jack capacity options built around an alloy-steel frame and a low-entry front section for reduced ride-height vehicles. The 3-ton unit is rated at 6,000 lb with a maximum lift height of 19.9 in. The 5-ton unit is rated at 10,000 lb with a maximum lift height of 22 in. Both variants use a wheeled chassis with a lift arm and round saddle contact point.

Hydraulics in Plain View

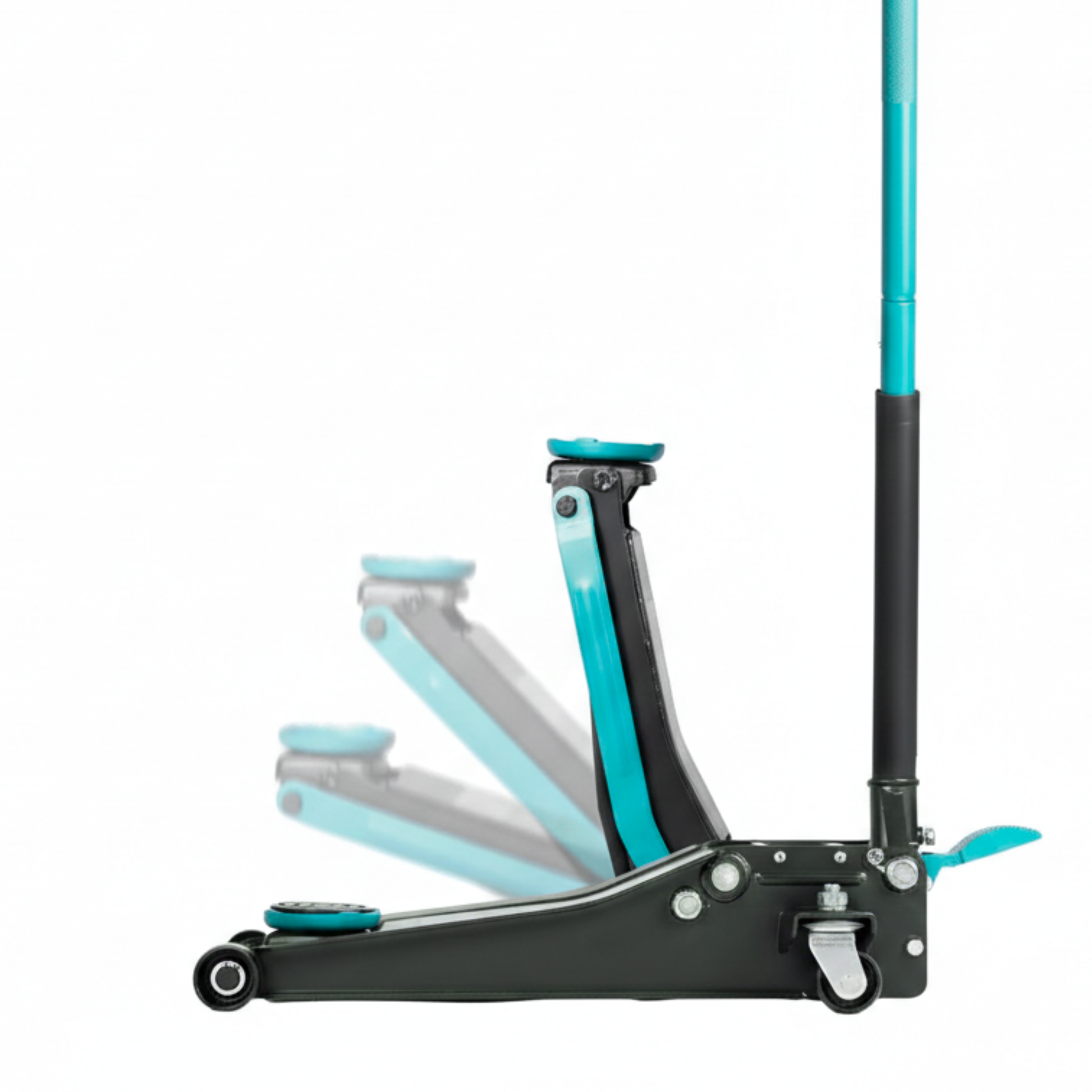

Lifting is generated by a hand-operated hydraulic pump that pressurizes fluid in the cylinder to rotate the lift arm upward at the saddle. The dual-piston pump moves hydraulic fluid on repeated handle strokes to raise the lift arm without external power. An overload valve is built into the hydraulic circuit to limit pressure above the rated load. Typical service access includes wheel removal and underbody work such as brake and suspension component access, based on the selected ton rating.

Setup, Placement, and Storage Routine

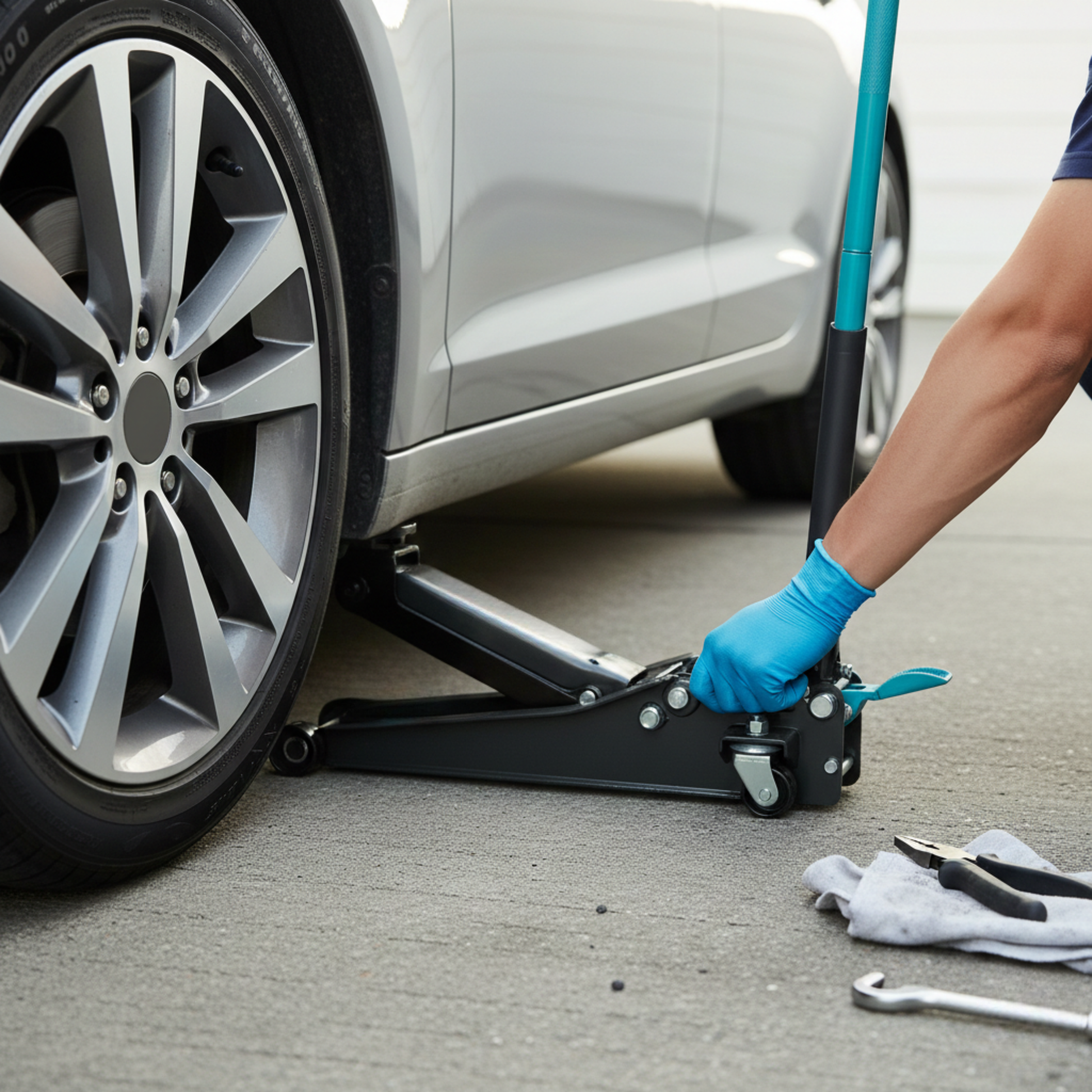

Place the jack on a flat, hard surface and roll the saddle under the vehicle’s manufacturer-specified jacking point. Pump the handle through full strokes until the saddle contacts the lift point, then continue pumping to the needed height within the jack’s rated range. Lower using the release control that opens the hydraulic valve for controlled descent. Store in a garage, shop bay, or vehicle cargo area based on the unit’s footprint and listed weight.

Product Benefits:

• Capacity Options: Available in 3-ton or 5-ton rated load variants.

• Lift Height Range: 3-ton lifts up to 19.9 in; 5-ton lifts up to 22 in at the saddle.

• Low-Profile Entry: Front section is shaped for reduced ride-height vehicles at manufacturer jacking points.

• Manual Hydraulic Pump: Handle strokes drive a dual-piston pump to raise the lift arm without external power.

• Wheeled Floor Chassis: Rolls on a flat, hard surface for positioning under the vehicle’s specified lift point.

Specification:

• Material: Alloy steel

• Load Capacity Options: 3 ton: 6,000 lb; 5 ton: 10,000 lb

• Maximum Lifting Height Options: 3-ton: 19.9 in; 5-ton: 22 in

• Weight Options: 3-ton: 66 lb; 5-ton: 100 lb

• Placement or Use Area: Garage floor, driveway, shop bay; underbody access points at vehicle jacking locations

• Vehicle Service Type (3-ton): ATV, car, RV, trailer

• Vehicle Service Type (5-ton): Bus, car, RV, SUV, tractor, trailer, truck, UTV, van
