OBD2 Scanner Code Reader for 1996+ Vehicles with CAN Support

OBD2 Scanner Code Reader for 1996+ Vehicles with CAN Support

$9.99
$14.99 $9.99
Sale Sold out
Shipping calculated at checkout.
In stock, ready to ship

Port-Driven Diagnostics, Not Extra Hardware

This scanner interfaces through the and runs as a standalone reader with an integrated display and keypad. It supports common OBD2 and CAN communication used on 1996+ (US) vehicles where OBD2 is present. The attached cable is 2.5 ft for reach from the DLC to the driver seating position.

OBD2 Scanner Code Reader for 1996+ Vehicles with CAN Support

What the Tool Accesses on an OBD2 System

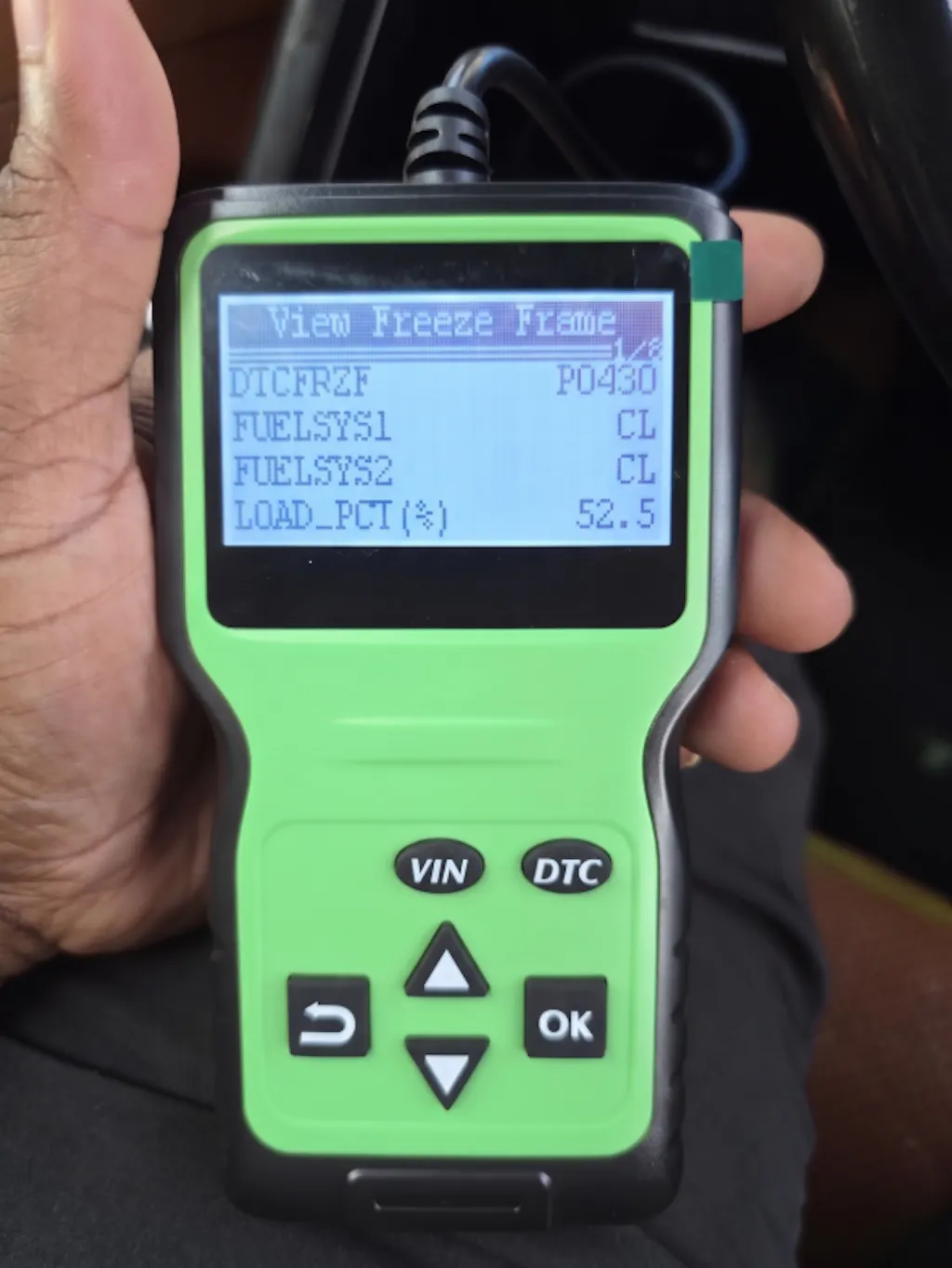

The unit reads and clears powertrain diagnostic trouble codes tied to the malfunction indicator lamp and includes an onboard DTC reference library. It can display freeze frame data captured at the time a code set, show I/M readiness monitor status, and report vehicle information available through OBD2. Live data mode provides PID values and on-screen graphing, including engine speed (RPM), engine coolant temperature, calculated load, and vehicle speed.

OBD2 Scanner Code Reader for 1996+ Vehicles with CAN Support

Connection Steps and Handling

Insert the connector into the vehicle’s OBD2 port, switch the ignition to ON, then use the menu keys to establish communication. For live data, start the engine when viewing PIDs that require the PCM to be active. Power is supplied by the vehicle through the DLC, so no external charging method is used. A removable protective film may be present on the screen surface for handling during storage.

Product Benefits:

  • Vehicle Interface: Connects to the vehicle OBD2 16-pin DLC for communication and power.
  • Standalone Controls: Integrated screen and keypad for menu navigation without a phone or computer.
  • Code Functions: Reads and clears powertrain diagnostic trouble codes related to the malfunction indicator lamp.
  • Status Displays: Shows freeze frame records, I/M readiness monitor status, and available OBD2 vehicle information.
  • Live PID Viewing: Displays common live data parameters and supports on-screen graphing where supported.

Specification:

  • Material: ABS plastic housing with insulated cable jacket
  • Dimensions: 5.02 × 2.75 × 1.05 in
  • Weight: 0.51 lb
  • Power Source: Vehicle-powered via OBD2 16-pin DLC (typical 12V system supply)
  • Operating Capacity: OBD2 powertrain DTC read/clear, freeze frame, I/M readiness, vehicle info, live data PIDs with graphing
  • Connection Type: OBD2 16-pin connector with attached 2.5 ft cable
  • Placement or Use Area: Interior cabin access at DLC (driver footwell area on most vehicles)
