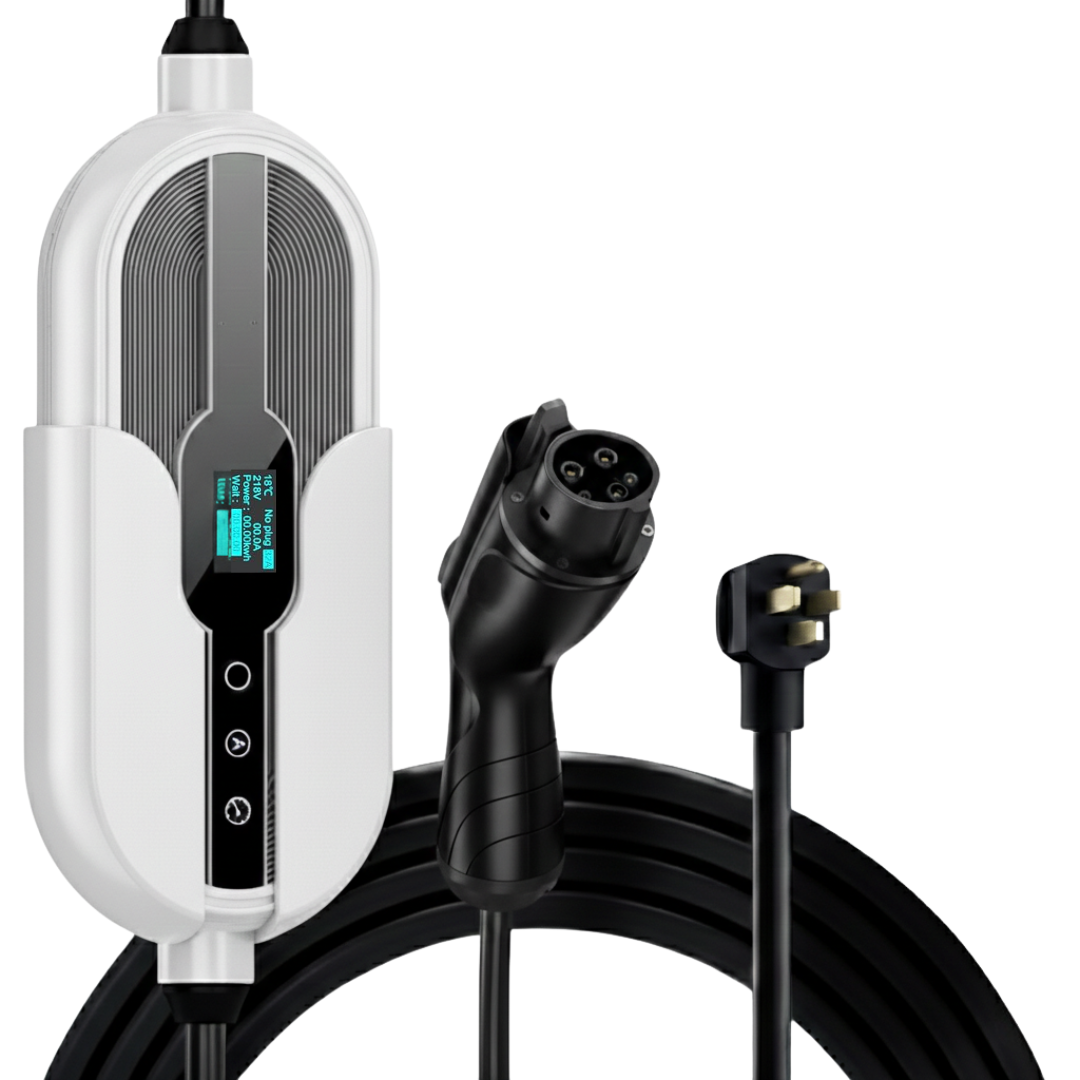

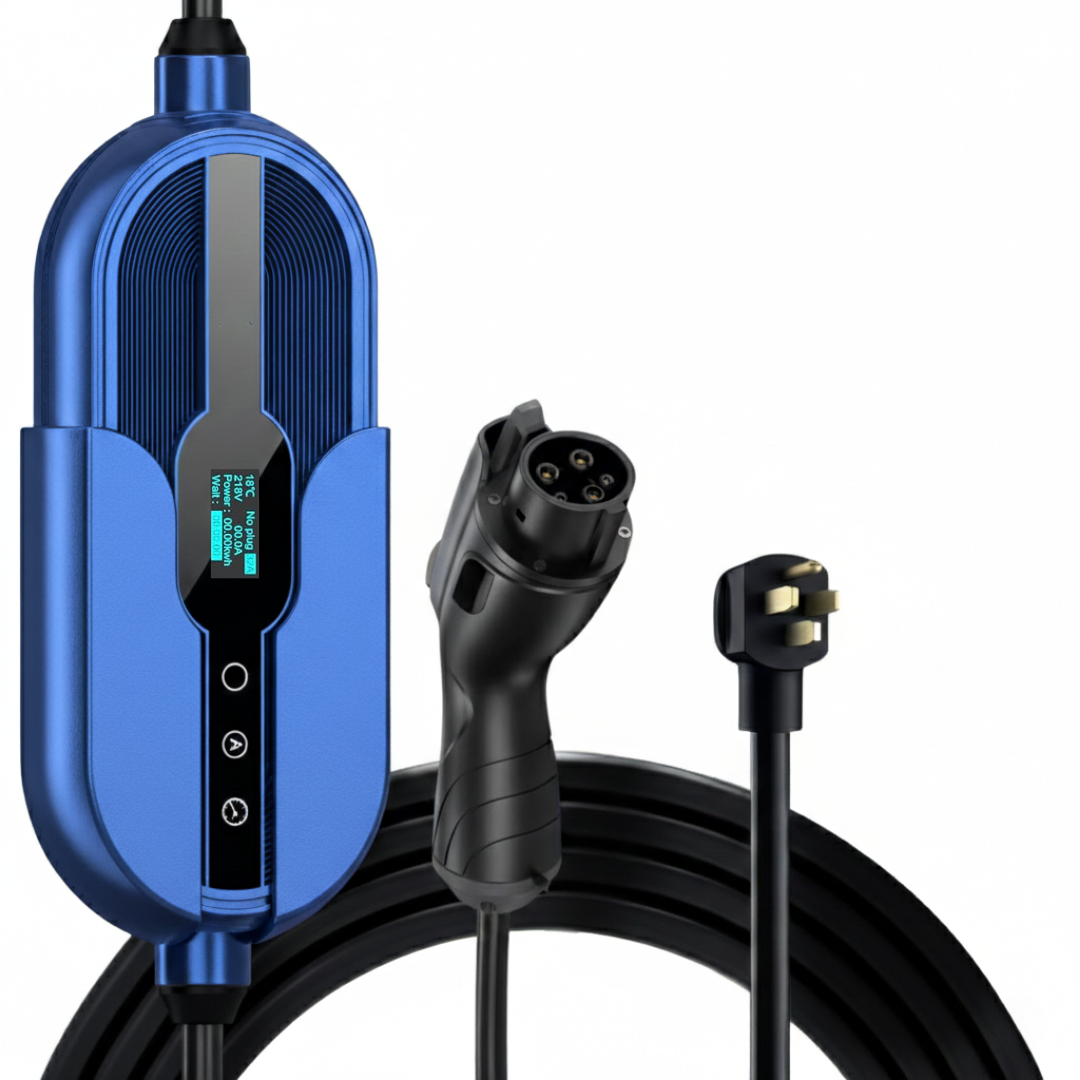

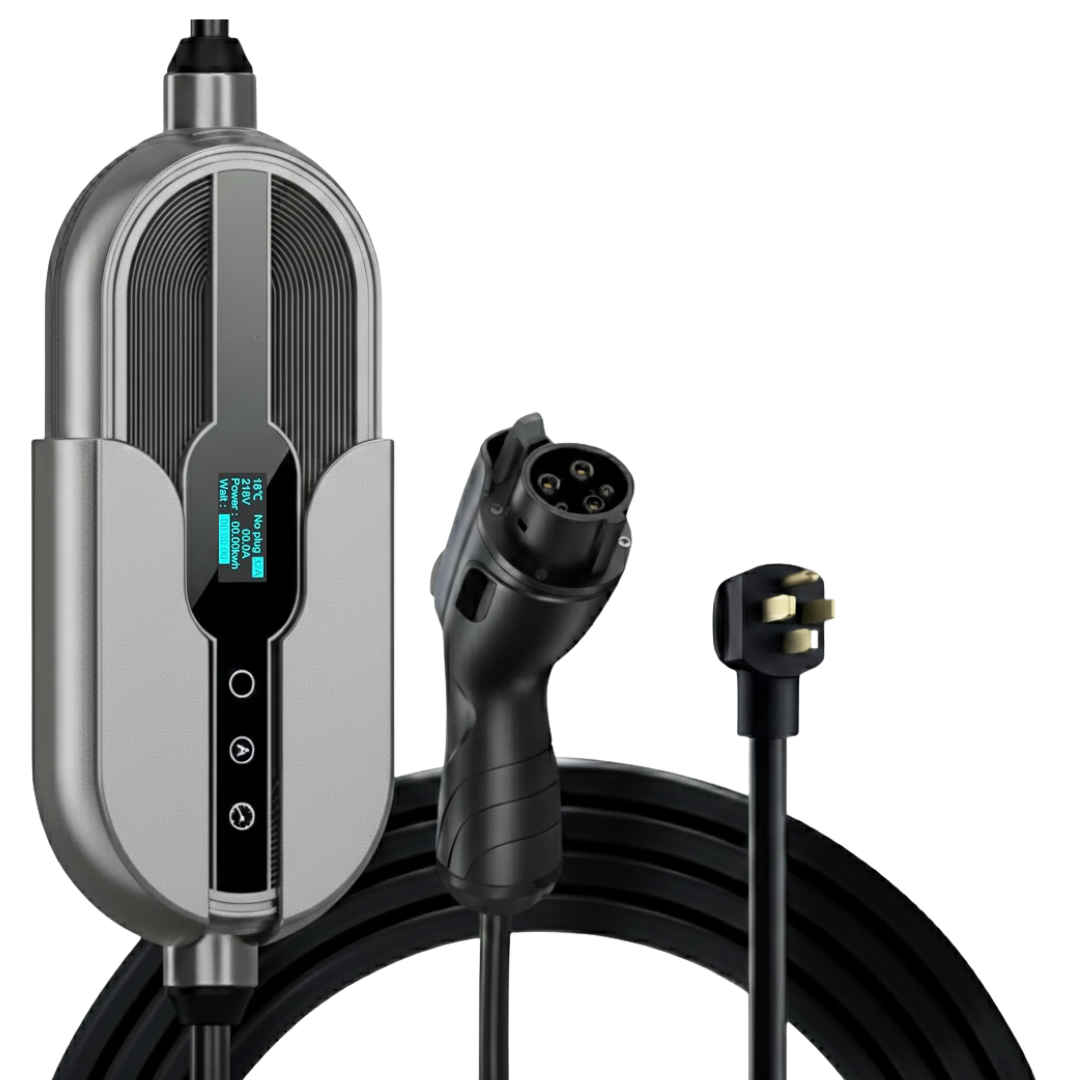

Portable 32A Level 2 EV Charger 240V NEMA 14-50 J1772 25ft Cable

Current Where It Counts

This Level 2 EV charger operates on a 220V to 240V AC input using a NEMA 14-50P plug configuration. Output current is adjustable between 16A, 24A, and 32A, aligned with 20A, 30A, and 40A circuit capacities (80% continuous load guideline). The unit integrates a SAE J1772 connector compatible with most North American EV and PHEV systems. Internal circuitry includes CCID-20 leakage detection. The enclosure follows NEMA Type 4 construction for dust and water resistance under typical installation conditions.

Power Delivery in Practice

The charger supplies up to 7.68 kW at 240V (32A setting), depending on circuit availability and vehicle acceptance rate. Charging current can be adjusted using onboard touch controls or through a WiFi-connected mobile application. The LED display presents real-time data including amperage, input voltage, and charge status. Two operating modes are available: direct plug-charge and app-controlled scheduling. When connected through a 120V adapter, output is limited to Level 1 rates up to approximately 1.8 kW, depending on circuit capacity.

Garage Setup Logic

Installation uses a standard NEMA 14-50 outlet with no hardwiring required. The 25 ft (7.6 m) cable allows reach across typical garage or driveway layouts. Wall mounting is supported using the included bracket and cable holder for organized storage. Amperage settings require disconnecting the charging handle before adjustment via the control panel. WiFi reset and factory reset functions are accessed through button combinations on the unit interface.

Product Benefits:

• Adjustable Current Output: Selectable 16A, 24A, or 32A settings aligned with common circuit configurations
• Standard Connector Fitment: SAE J1772 connector compatible with most North American EV and PHEV charging ports
• Plug-In Power Access: Connects through NEMA 14-50 outlet for 220V to 240V supply
• Extended Cable Reach: 25 ft cable supports flexible vehicle positioning
• Integrated Control Interface: LED display with real-time data and direct adjustment

Specifications:

• Input Voltage: 220V–240V AC
• Output Current: 16A / 24A / 32A selectable
• Maximum Power Output: Up to 7.68 kW
• Power Source: NEMA 14-50P plug
• Vehicle Connector: SAE J1772
• Cable Length: 25 ft (7.6 m)
• Charging Level: Level 2 (Level 1 when used with 120V adapter)
• Circuit Requirement: 20A to 40A dedicated circuit
• Ingress Rating: NEMA Type 4 enclosure
• Display Type: LED screen
• Connectivity: WiFi (2.4 GHz)
• Use Area: Garage, driveway, or similar installation areas
