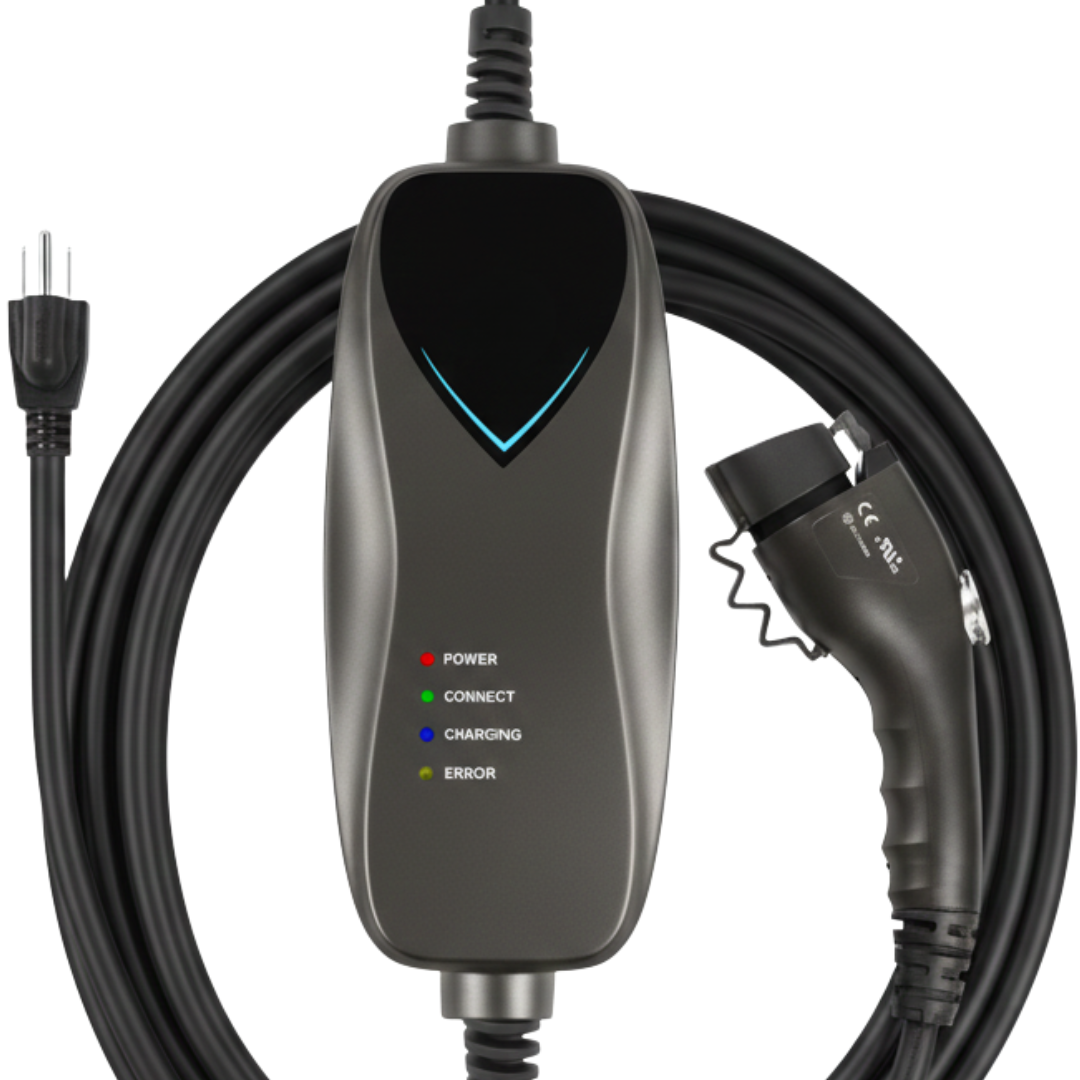

Portable EV Charger Level 1 120V 15A J1772 NEMA 5-15 16 ft Cable

Inline Control Meets Dual Voltage Input

This portable EV charger uses a J1772 connector and operates on a 120V AC input through a NEMA 5-15 plug. It delivers a fixed 15A output, providing up to 1.65 kW charging power. The inline control module is integrated into the cable for status monitoring and consistent operation during charging sessions.

Current Regulation Through Cable Assembly

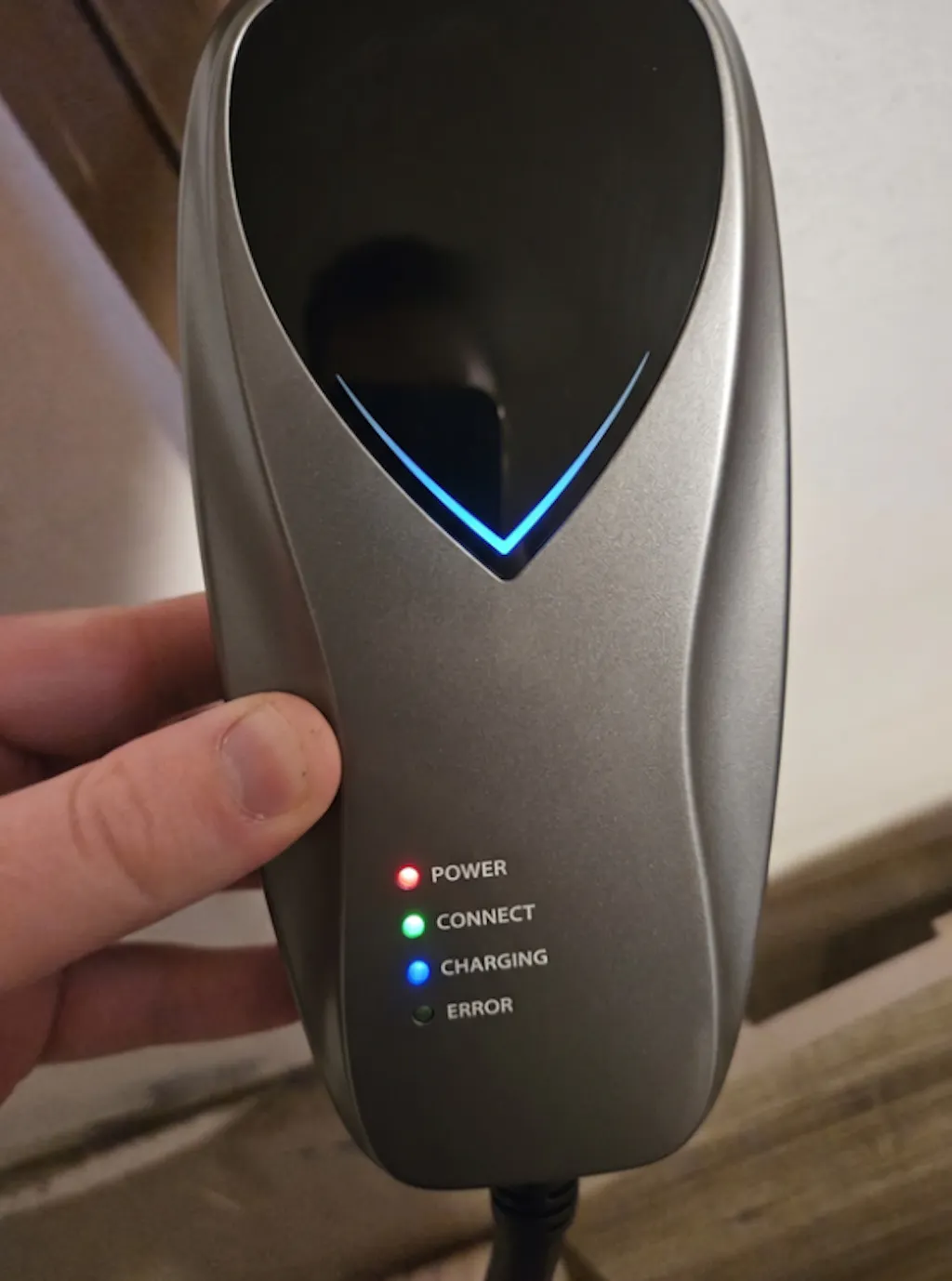

The unit connects directly to a standard household outlet and supplies continuous current to the vehicle through the J1772 interface. LED indicators display connection status, active charging, and fault conditions. The system operates on a single-phase 120V circuit and maintains stable output during use.

Plug Connection and Cable Routing

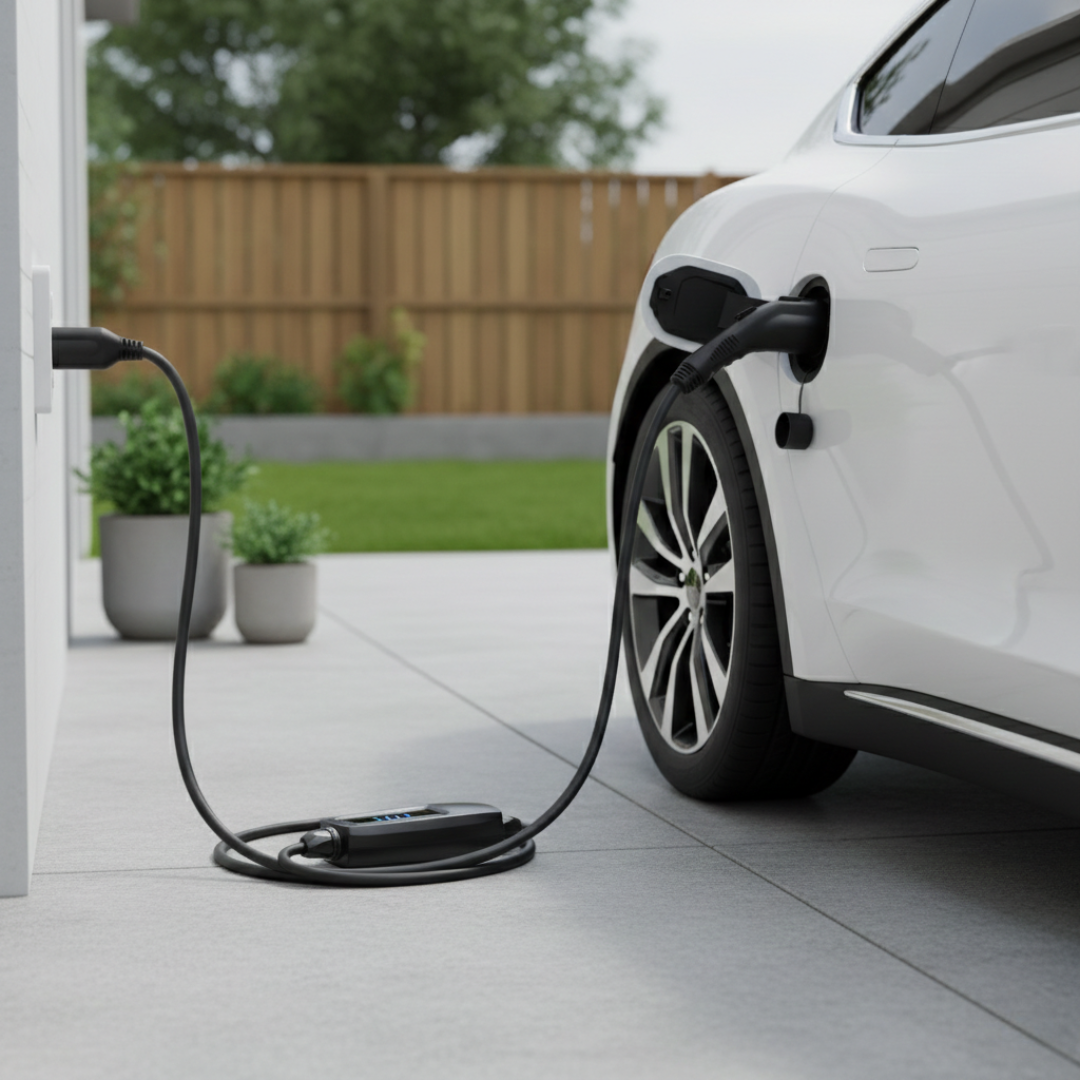

A 16 ft cable provides reach between the outlet and vehicle inlet in common parking setups. The charger is designed as a single-piece portable unit for storage in a vehicle or garage space. The cable can be coiled loosely after use for organized storage.

Product Benefits:

Specifications:

• Material: Molded plastic control housing with insulated copper cable
• Power Source: 120V AC, single-phase, 60 Hz
• Output: 15A (1.65 kW max)
• Connector Type: SAE J1772 vehicle connector
• Plug Type: NEMA 5-15 (Type A, 2-pin)
• Cable Length: 16 ft integrated charging cable
• Ingress Rating: IP65 enclosure protection
• Use Area: Residential garage, driveway, or outdoor charging access
