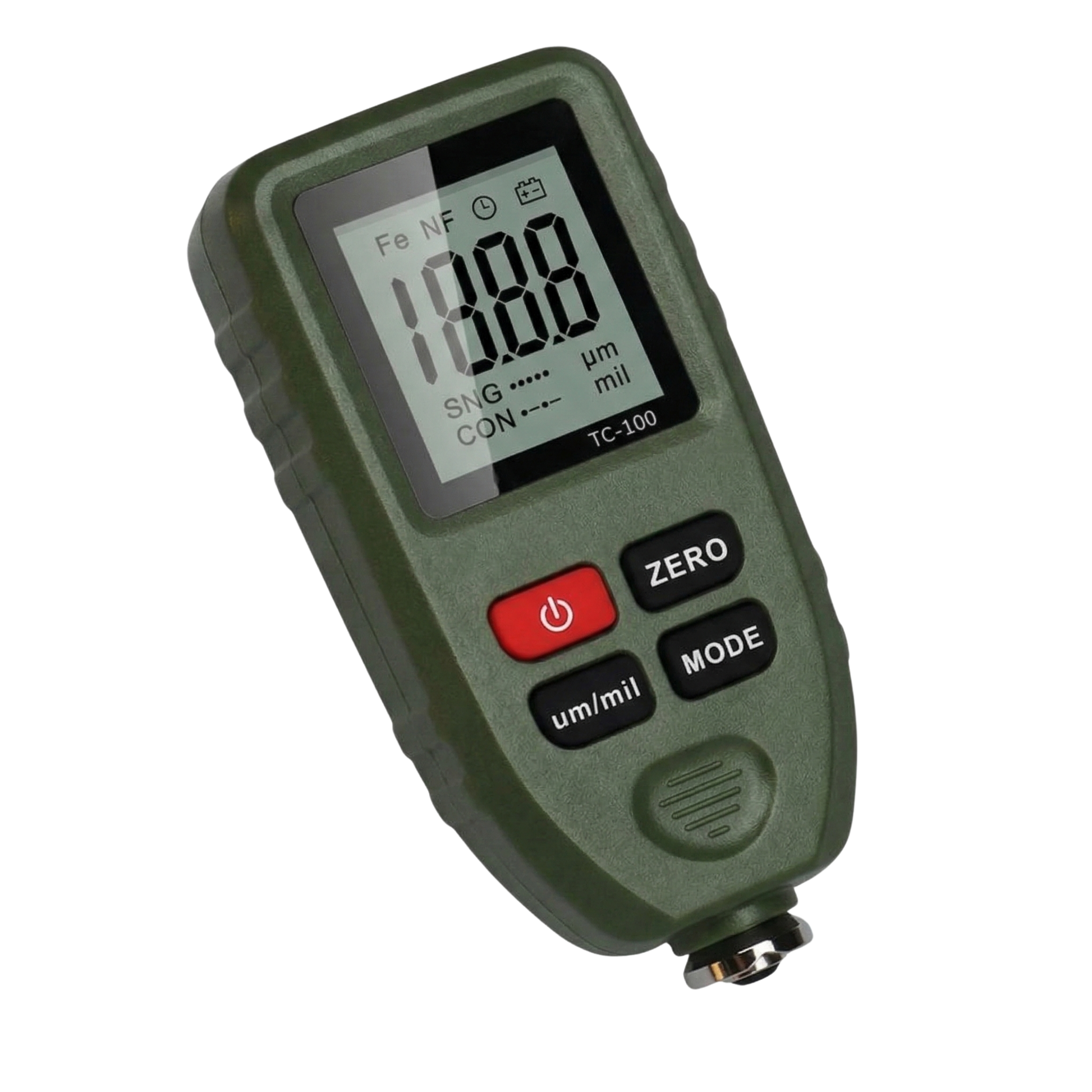

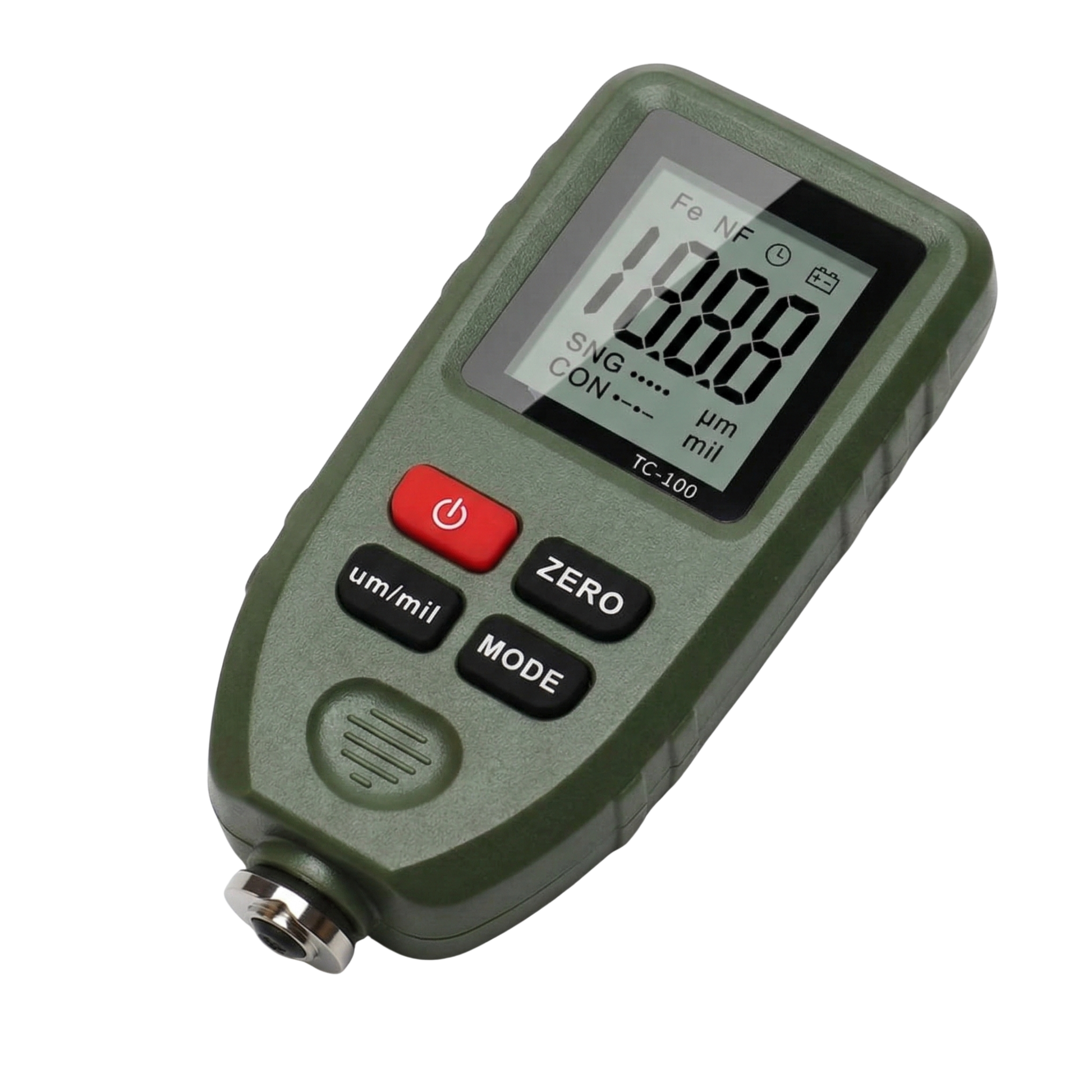

Vehicle Paint Thickness Meter Gauge for Steel and Aluminum Panels

Handheld Coating Measurement Body

This coating thickness meter uses dual substrate recognition for measuring paint and coating depth on ferrous and non-ferrous metal panels. The housing is manufactured from ABS material with a handheld vertical layout sized for one-hand operation during vehicle inspections. Digital measurement functions support steel body panels, aluminum hoods, doors, fenders, and metal-coated automotive components.

How the Sensor Reads Body Panels

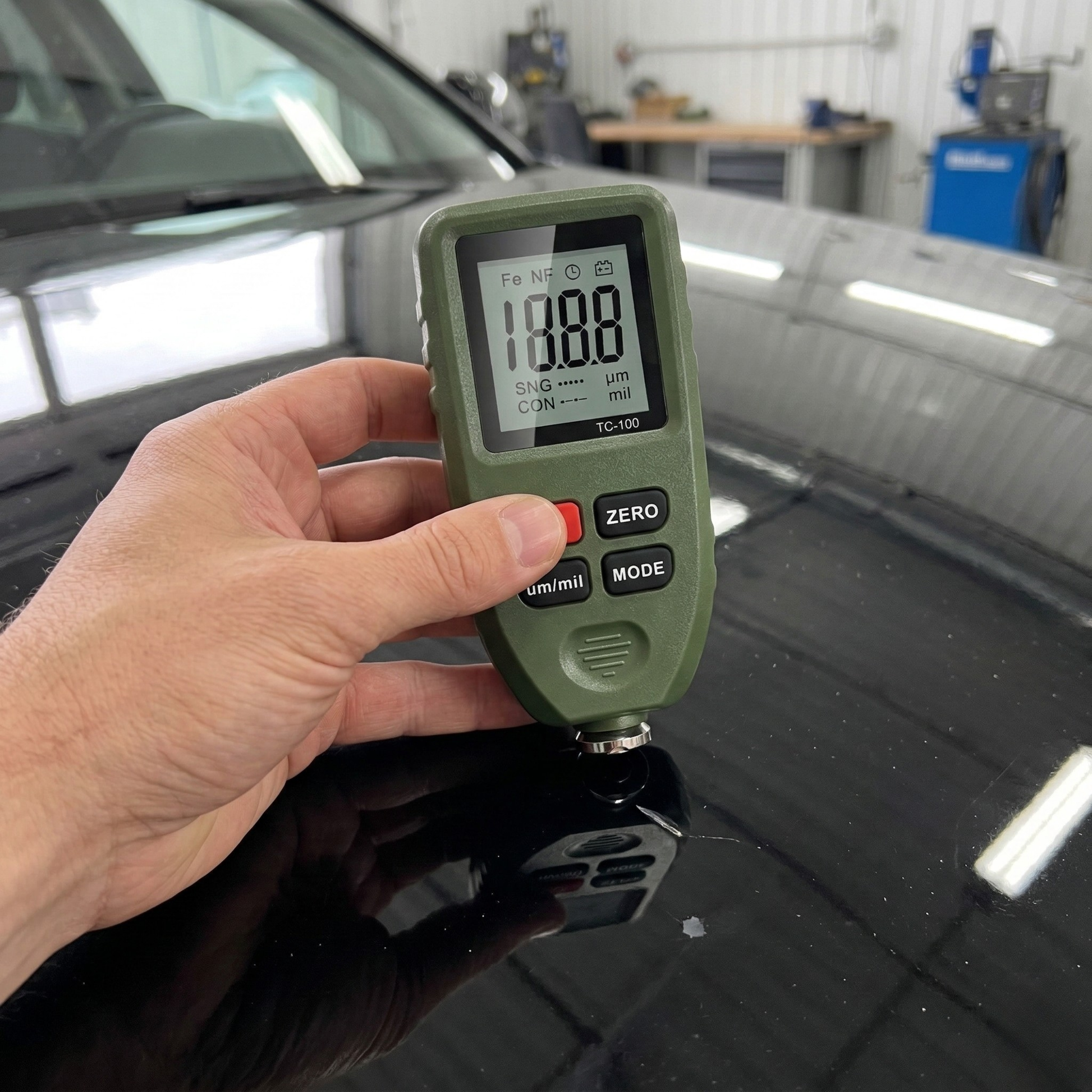

The gauge measures coating thickness directly against metallic surfaces using integrated sensor detection. Automatic material recognition switches between steel and aluminum substrates without manual adjustment during inspection. Common vehicle applications include checking paint consistency across doors, quarter panels, roofs, trunks, and replacement body sections. The meter is also compatible with metal bicycle frames, powder-coated components, anodized aluminum surfaces, lockers, and appliance housings.

Bag Ready for Vehicle Checks

Setup requires inserting the included 9V battery and calibrating the sensor using the supplied standard foils and metal reference plates. The compact body can be stored inside a storage bag for transport between garages, parking lots, auctions, and workshops. Measurement surfaces should remain clean and dry during operation to maintain direct sensor contact with the metal substrate. The device is intended for metallic materials only and is not compatible with plastic, fiberglass, wood, or composite body panels.

Product Benefits:

• Dual Substrate Detection: Automatically identifies steel and aluminum base metals during measurement.

• Handheld Inspection Tool: Compact gauge body sized for vehicle inspection kits and tool storage.

• Direct Contact Probe: Sensor head reads coating thickness through surface contact.

• Panel-to-Panel Readings: Suitable for checking multiple exterior vehicle body sections.

• Metal Surface Use: Intended for coated metallic panels and finished metal components.

Specifications:

• Material: Acrylonitrile Butadiene Styrene (ABS)
• Power Source: 9V battery

• Detection Type: Ferrous and non-ferrous substrate recognition
• Surface Compatibility: Steel and aluminum coated surfaces
• Display Type: Digital display interface
• Connection Type: Handheld standalone unit
• Calibration Components: 5 standard foils, 1 iron substrate, 1 aluminum substrate

• Placement or Use Area: Exterior body panels, garage inspections, used vehicle evaluations, workshop inspection areas

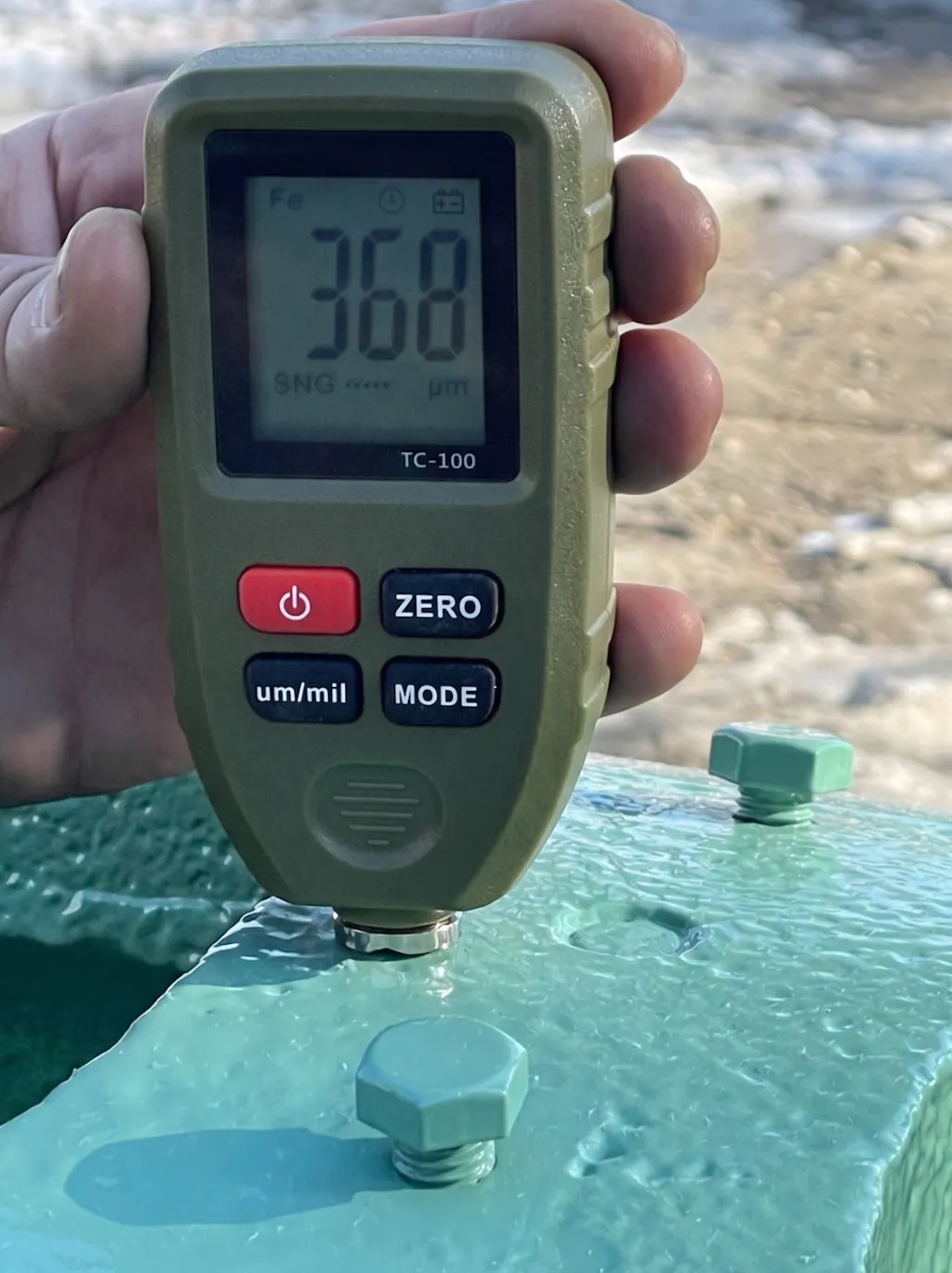

• Supported Applications: Automotive paint inspection, powder coating measurement, anodized aluminum checking, metal surface coating evaluation
• Non-Compatible Materials: Plastic, fiberglass, wood, and non metallic composite surfaces
